Using Instrument Functions
Using Markers
If a marker is on, two lines of numbers follow the marker annotation: the
upper line indicates the frequency in MHz, and the lower line indicates the
magnitude.
The examples in this section are shown with a transmission response
measurement of a
filter.
To follow along with these examples; use the filter
that was shipped with your analyzer, connect the equipment as shown, and
set up the analyzer by pressing the keys shown below the equipment setup.
NETWORK ANALYZER

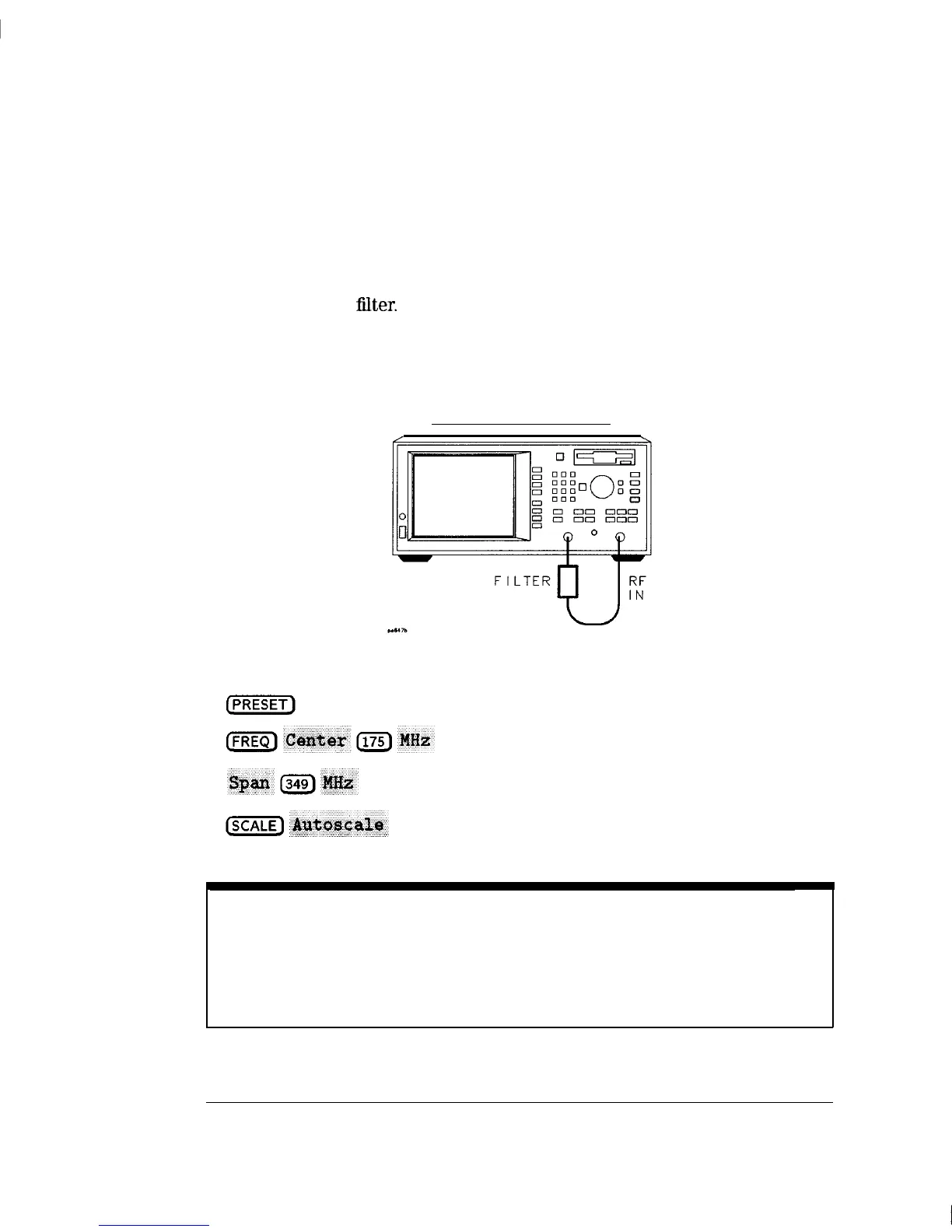

Figure 4-2. Connect the Filter to the Analyzer
NOTE
When you make a hardcopy of your measurement results that contain displayed markers, you can
choose to have a marker table appear on the hardcopy Refer to “Printing and Plotting Measurement
Results” later in this chapter.
4-4
