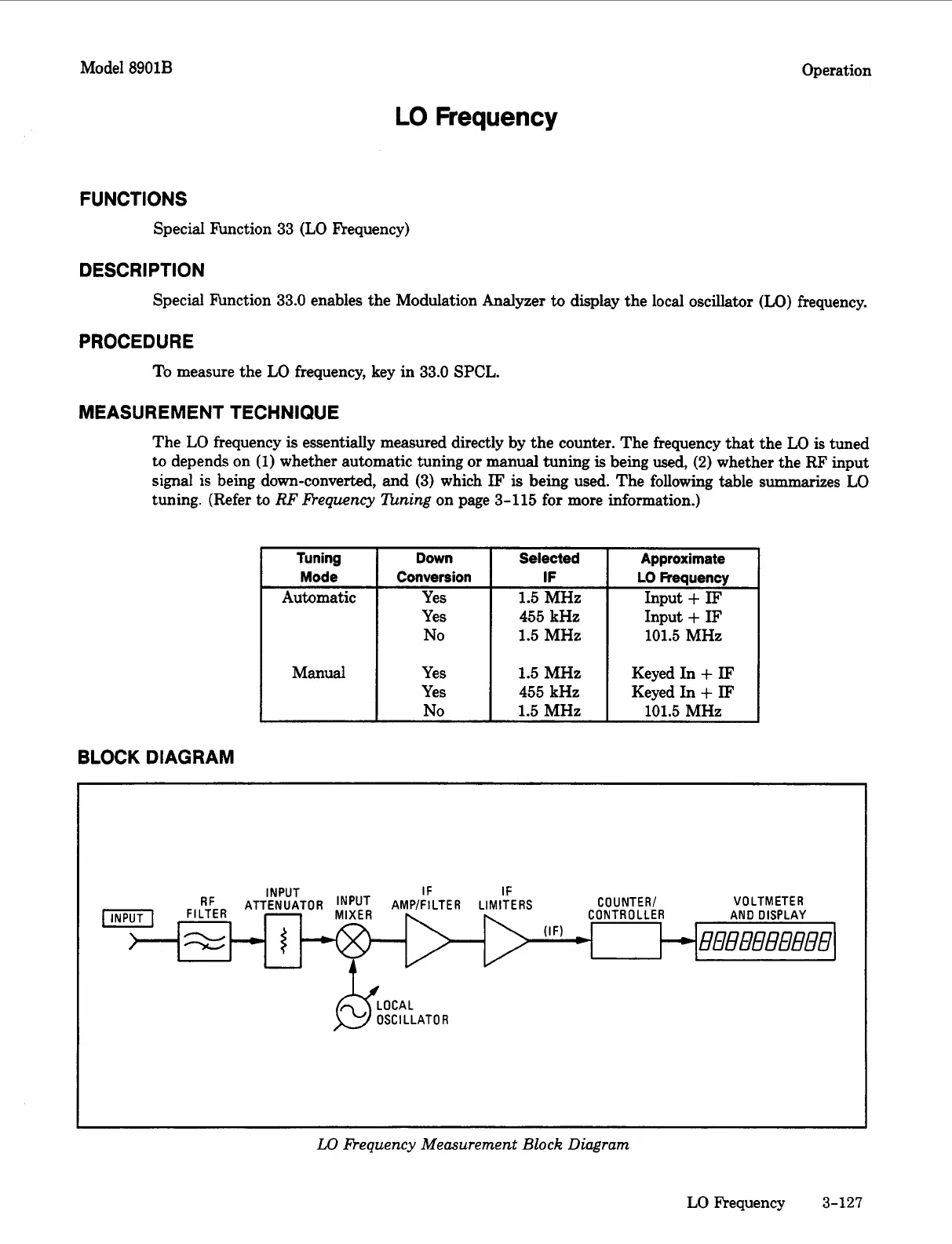

HP 8901B

Model 8901B Operation
Tuning
Mode
Automatic
LO Frequency
Down
Selected Approximate
Conversion
IF LO Frequency
Yes 1.5 MHz Input + IF
Yes 455 kHz Input + IF
No 1.5 MHz 101.5 MHz
FUNCTIONS
Special Function 33 (LO Frequency)
Manual
DESCRIPTION
Special finction 33.0 enables the Modulation Analyzer to display the local oscillator (LO) frequency.
Yes 1.5 MHz Keyed In + IF
Yes 455 kHz Keyed In + IF
No 1.5 MHz 101.5 MHz
PROCEDURE
To measure the LO frequency, key in 33.0 SPCL.
> %-
MEASUREMENT TECHNIQUE
-
$+
The LO frequency is essentially measured directly by the counter. The frequency that the LO is tuned
to depends on (1) whether automatic tuning or manual tuning is being used, (2) whether the RF input
signal is being down-converted, and (3) which IF is being used. The following table summarizes LO
tuning. (Refer to RF Requency Zhing on page 3-115 for more information.)
BLOCK DIAGRAM
I
LO frequency Measurement Block Diagram
LO Frequency 3-127
