Operation Model 8901B
A
-- -k'.
I
Manual Settings Not Allowed with RF Level Measurements
Manual setting of RF input attenuation is overridden when RF Level measurements are selected.
TO OTHER MEASUREMENT
CI R CU ITS

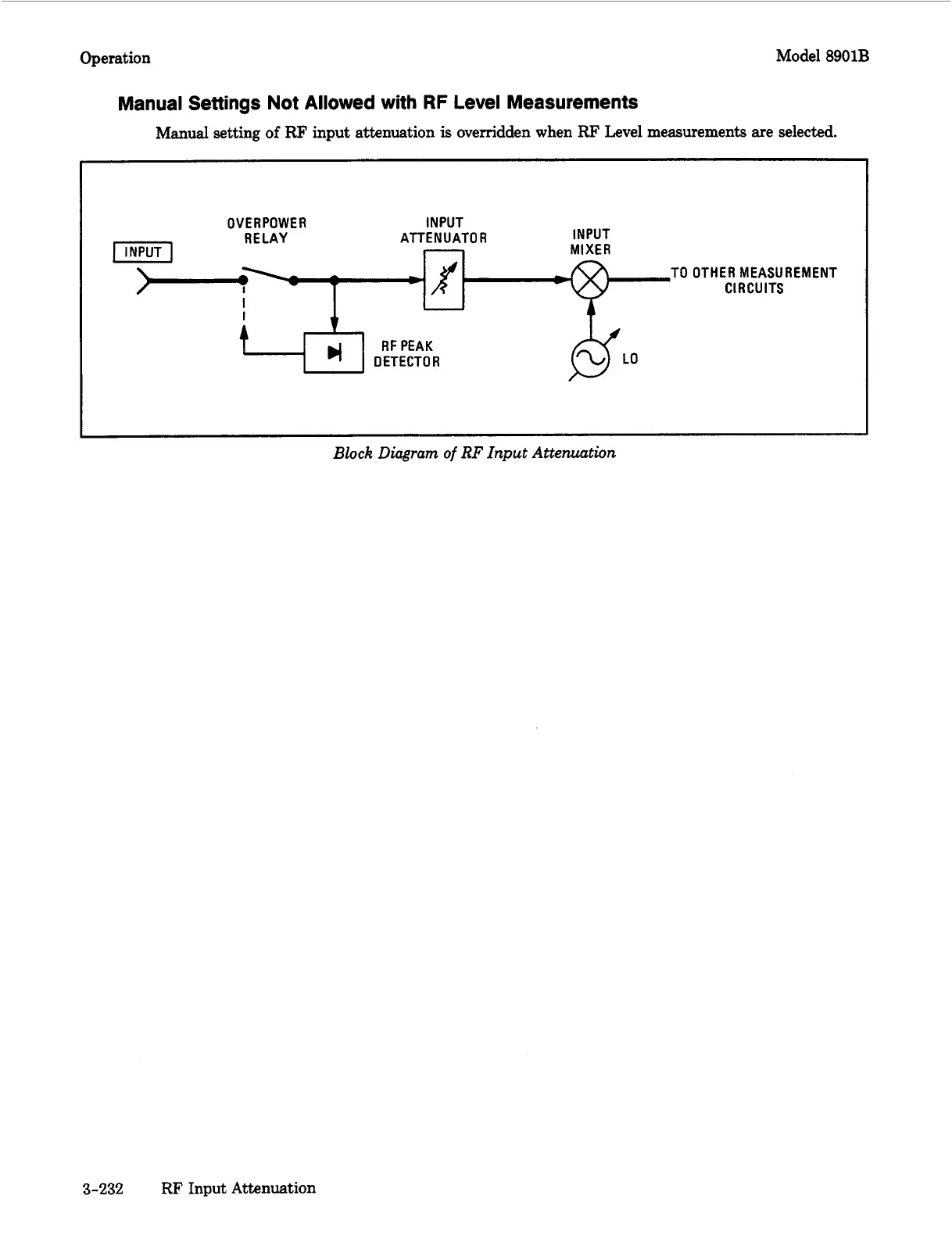

Block Diagram of RF Input Attenuation
3-232 RF Input Attenuation
