Special Function Operation
The
Special
hEtiOn
hfOffPlafiOn
PUll-OUf
card

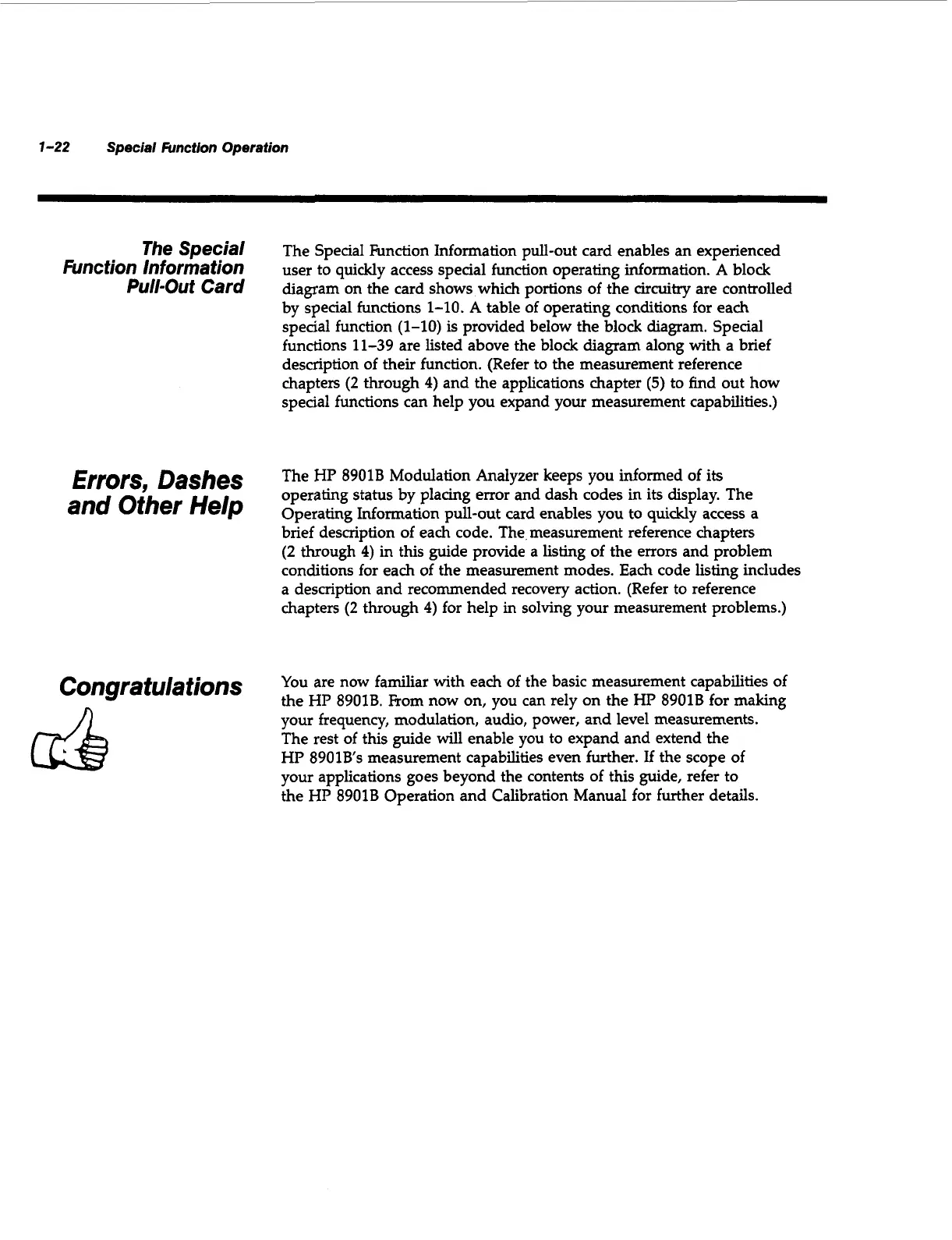

The Special Function Information pull-out card enables an experienced
user to quickly access special function operating information. A block
diagram on the card shows which portions of the
circuitry
are controlled
by special functions 1-10. A table of operating conditions for each
special function
(1-10)
is provided below the block diagram. Special
functions
11-39
are listed above the block diagram along with a brief
description of their function. (Refer to the measurement reference
chapters
(2
through
4)
and the applications chapter
(5)
to find out how
special functions can help you expand your measurement capabilities.)
&fofs,
Dashes
and
Other
Help
The HP 8901B Modulation Analyzer keeps
you
informed of
its
operating status by placing error and dash codes
in
its display. The
Operating Information pull-out card enables you to quickly access a
brief description of each code. The. measurement reference chapters
(2
through
4)
in
this guide provide a listing of the errors and problem
conditions for each of the measurement modes. Each code listing includes
a description and recommended recovery action. (Refer to reference
chapters
(2
through
4)
for help
in
solving your measurement problems.)
Congfat&tions
You
are now familiar with each of the basic measurement capabilities of
the HP 8901B. From now on, you can rely on the HP 8901B for making
your frequency, modulation, audio, power, and level measurements.
The rest
of
this guide will enable you to expand and extend the
HP
8901Bs
measurement capabilities even further.
If
the scope of
your applications goes beyond the contents of this guide, refer to
the
HP
8901B Operation and Calibration Manual for further details.
