Select Transfer > Send file… in the terminal window. The following dialog box appears:

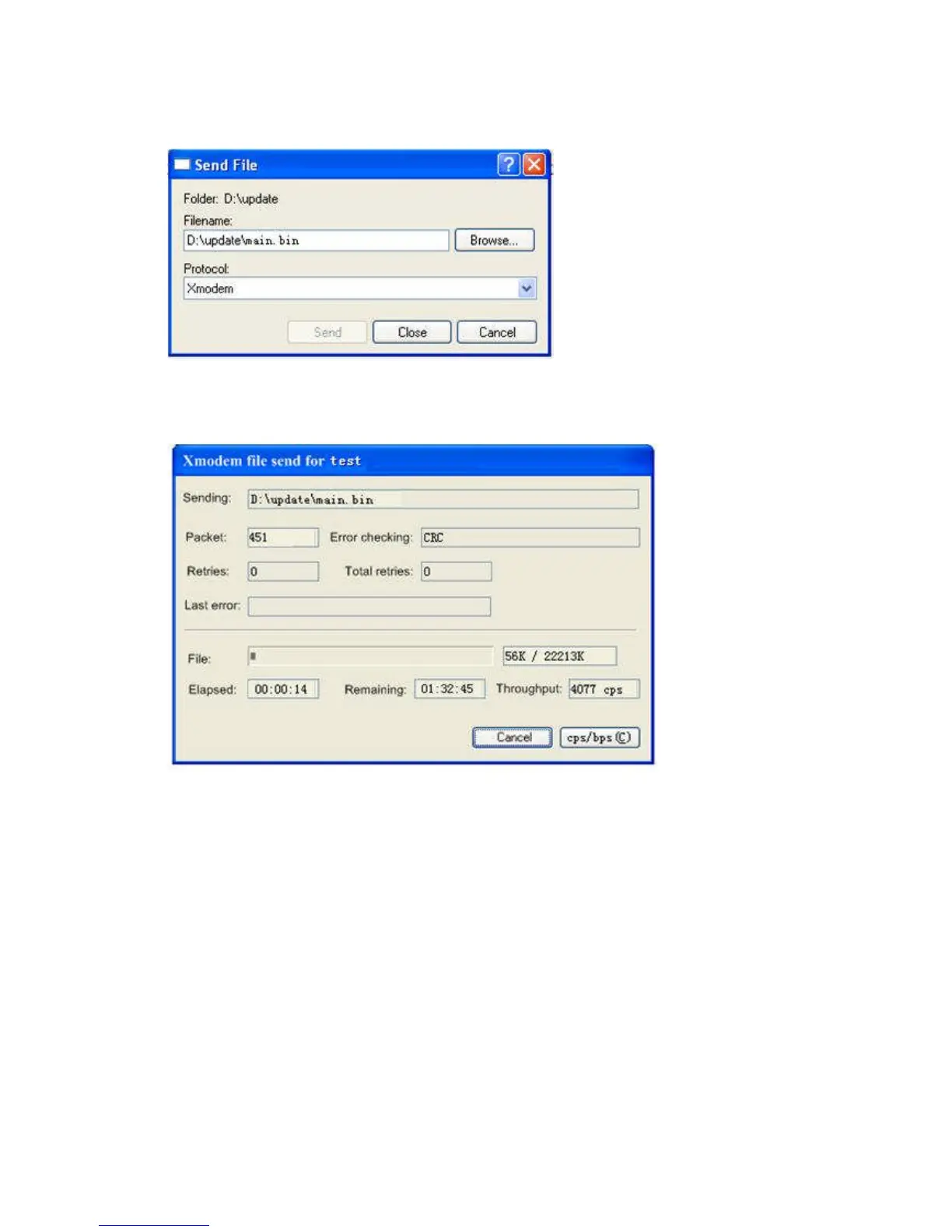

Figure 6-5 Send File dialog box
Click Browse… to select the application file to be downloaded, and select Xmodem from the
Protocol drop-down list. Then click Send and the following dialog box appears:
Figure 6-6 Sending file dialog box
After the file is downloaded, the following information appears on terminal interface:
Download successfully!
24384384 bytes downloaded!
The system prompts you to enter the name of application file to be downloaded to the current
storage medium.
Input the File Name:
If the file name is different from that of any existing file on the storage medium, the application
file will be saved as this file name, for example,
Input the File Name:main.bin
Updating File cfa0:/main.bin................ ... ........................
...................................................................................
.....
...................................................................................
.....
.........................................Done!
After that, you need to return to the main menu, enter the file control sub-menu, and set the
application file as the default boot program. The system will use this program for next system
