LED Status Meaning
SFP0 and SFP1
(yellow/green)
Off No optical link is present.
Solid green An optical link is present.
Blinking green Data is being sent or received at a rate of 1000 Mbps.
Solid yellow The optical transceiver has failed in POST.
GE0 and GE1
(yellow/green)
Off No link is present.
Solid green A 1000 Mbps link is present.
Blinking green Data is being received or transmitted at a rate of 1000 Mbps.
Solid yellow A 10/100 Mbps link is present.
Blinking yellow Data is being received or transmitted at a rate of 10/100 Mbps.
Slots
FIP-110s can be inserted into Slot 0 through Slot 3, and Slot 6 through Slot 9 on the A6616. The
slots on a FIP-110 are numbered 1 to 4 from the bottom up and from right to left, as shown in
Figure 1-19.

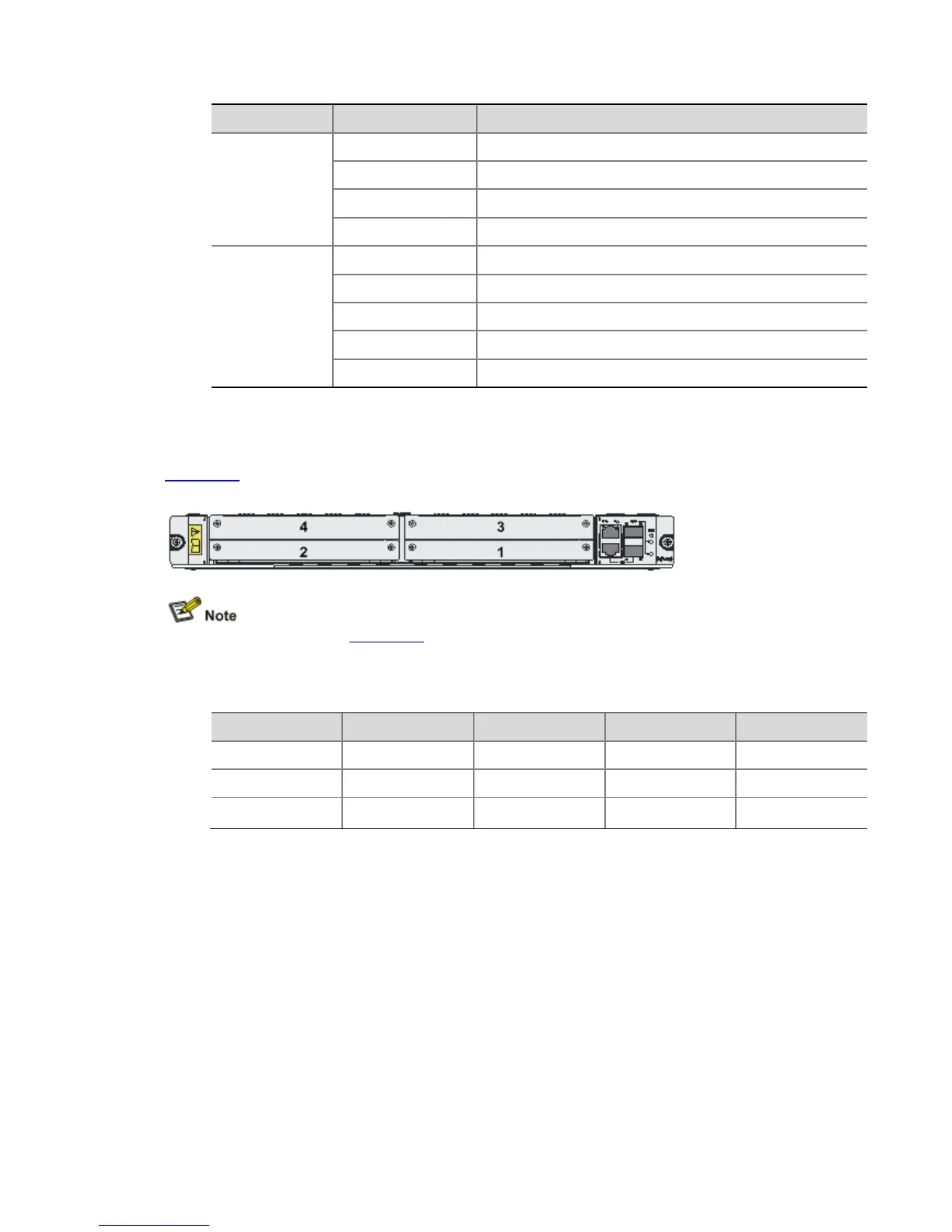

Figure 1-19 Interface module slots on the FIP-110
The numbers 1 through 4 in Figure 1-19 represent Slot 1 through Slot 4 respectively.
Maximum interface modules provided by FIP-110s in full configuration
Table 1-22 Maximum interface modules provided by FIP-110s in full configuration
Interface module One RPE-X1 Two RPE-X1s One RSE-X1 Two RSE-X1s
FIP-110 8 8 8 7
MIMs 32 32 32 28
HIMs Not supported Not supported Not supported Not supported
FIP-200
Introduction
The FIP-200 provides a high-speed service processing capability. The FIP-200 supports
SR6600 HIMs and MIMs, and provides two Combo interfaces. In consideration of smooth
upgrade requirements, the FIP-200 supports two HIMs or two MIMs, or intermixing of a HIM and
a MIM. The FIP-200 is hot-swappable.
