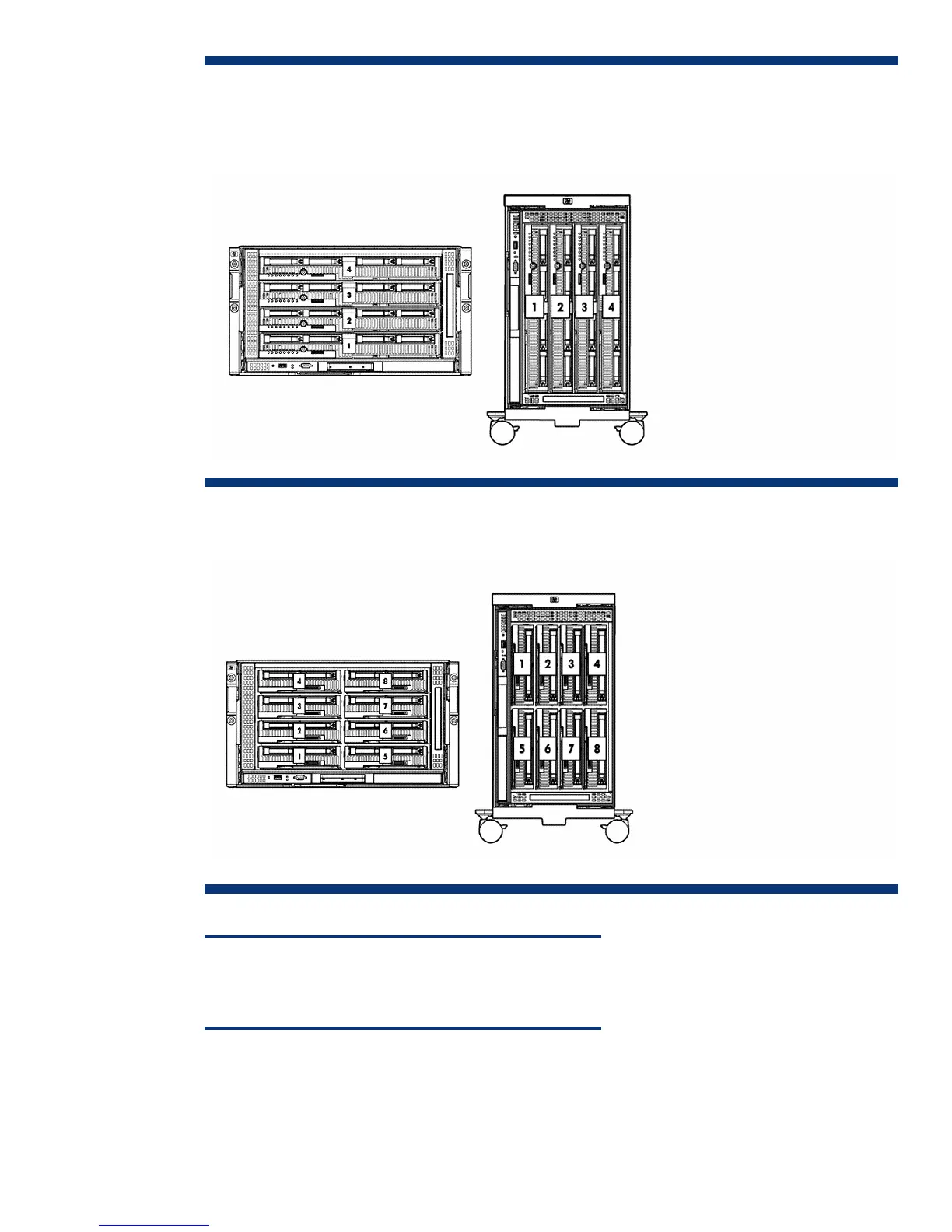

Figure A-3. Full-height server blade device bay numbering for HP BladeSystem c3000 Enclosure. Full--height
servers should be populated from bottom to top (rack) or left to right (tower) when viewing from the front of the
enclosure. With four fans, only the bottom or left two device bays can be used; with six fans, all device bays can
be used.
Figure A-4. Half-height server blade device bay numbering for HP BladeSystem c3000 Enclosure. Half--height
servers should be populated in the following order: Device bays 1, 5, 2, 6, 3, 7, 4, 8.
IMPORTANT
When looking at the rear of the enclosure, device bay
numbering is reversed.
