HP BladeSystem c7000 Quick Setup Instructions

6
CAUTION: Do not mix HP 2250W, HP 2400W High
Efficiency, HP BL7000 2400W Platinum, or -48vDC
power supplies in one enclosure. Install only one type of
power supply in a single enclosure.
If your HP BladeSystem c7000 Enclosure is equipped with a
three-phase power configuration, you need six power supplies.

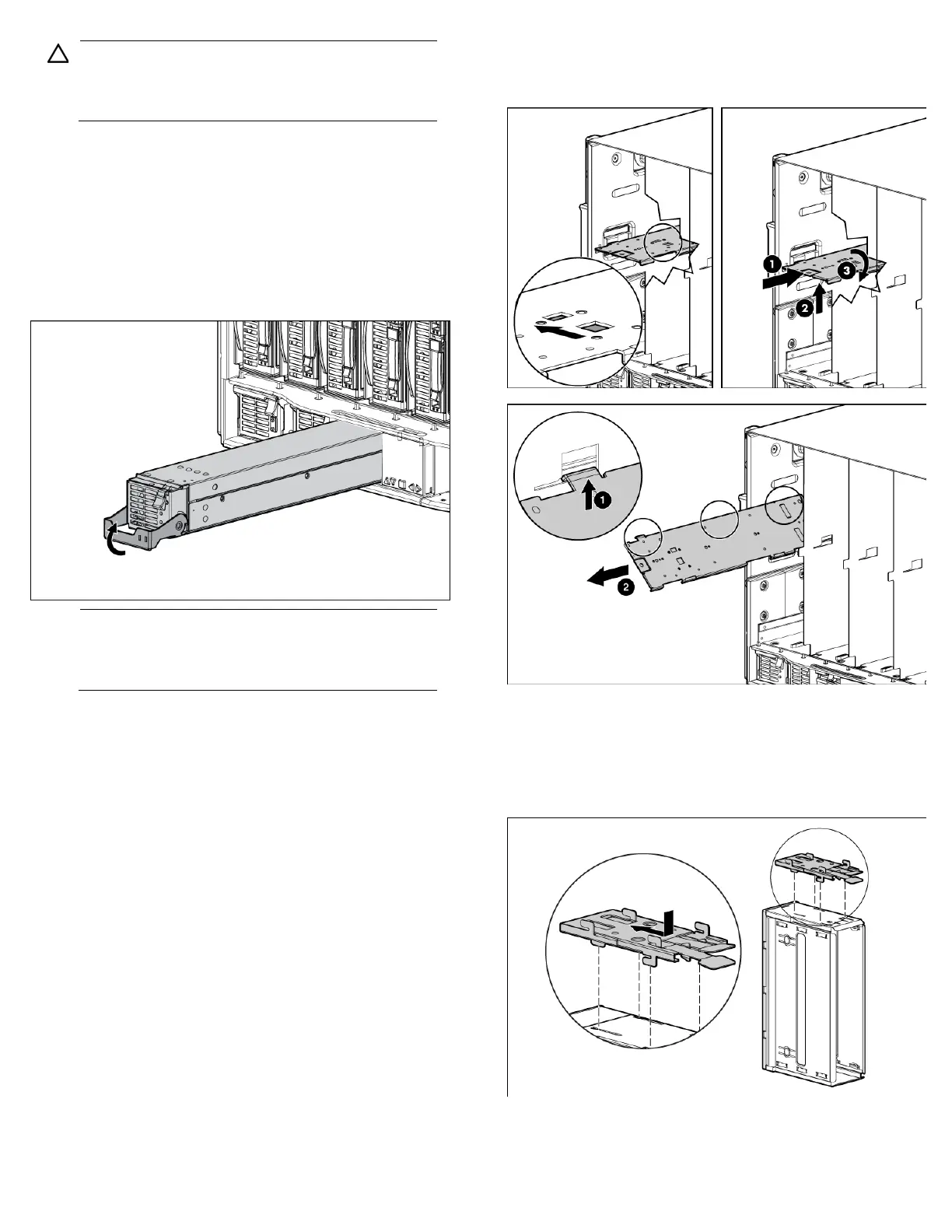

To install a power supply:
1. To gain access to all power supply bays, slide the HP
BladeSystem Insight Display to the right or left as needed.
2. Remove the power supply blank.
3. Insert the power supply into the enclosure, and then close the
power supply bracket.
NOTE: This document discusses installation of AC power
supplies only. For information on configuring DC power
supplies or HP Carrier Grade Solutions, see the
documentation that came with your power supply.
4. Add any ordered options to each server blade:
o Additional processor
o Additional memory
o Mezzanine option cards
5. (Optional) If you are installing a full-height device, remove the
half-height device bay shelf. If you are installing a half-height
device, omit this step.
6. Remove the connector covers.
7. Install the server or storage blades.
8. Install device bay blanks into any unused device bays.
If the empty bays are configured for a full-height device, join two
device bay blanks to create a full-height blank.

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
