4. Install the rear cage into the enclosure, close the hinges, and
tighten the thumbscrews.

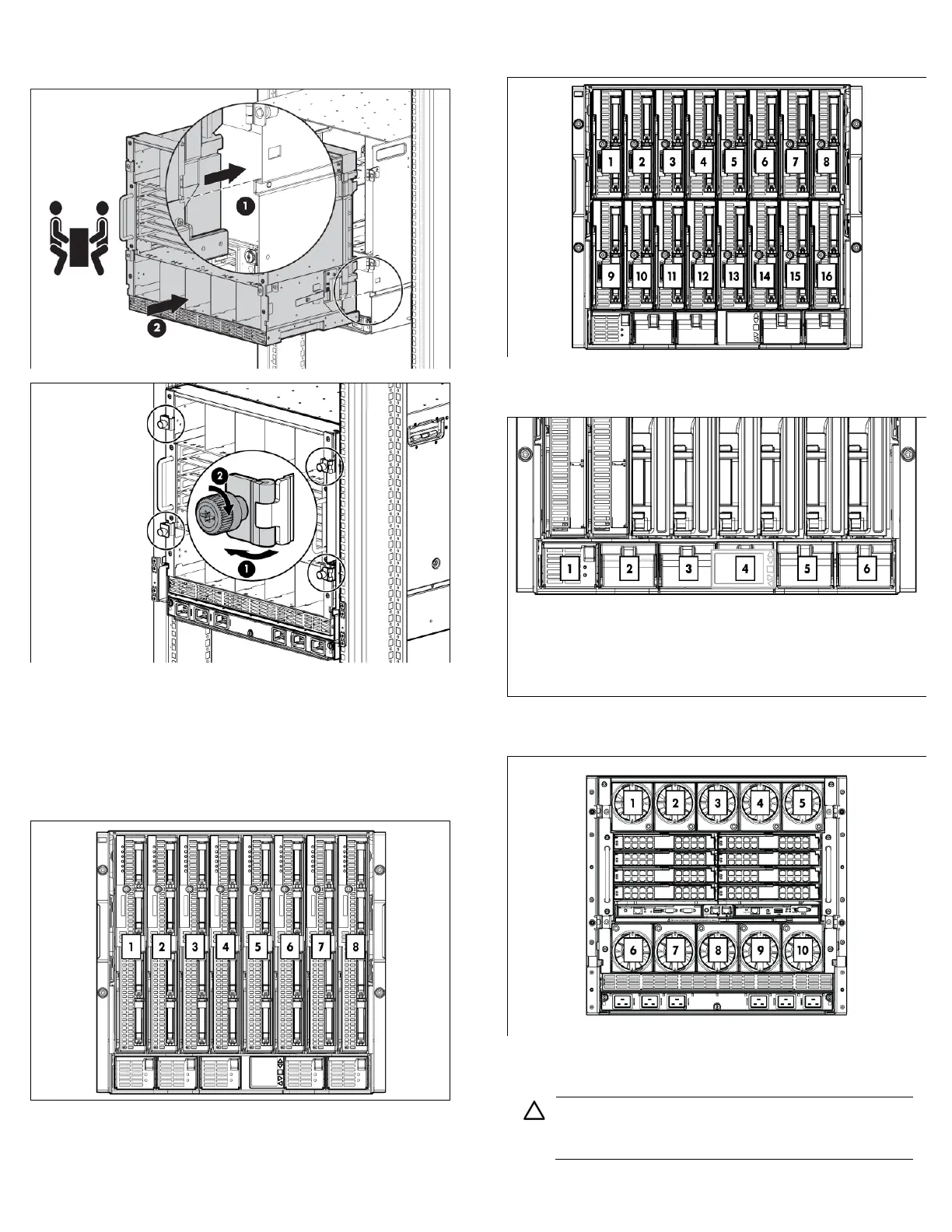

Enclosure bay identification
Before installing front or rear components into the enclosure, review
enclosure bay numbering for each component.
Full-height device bay numbering
Half-height device bay numbering
Power supply bay numbering
Fan bay numbering
Installing the front components
CAUTION: To prevent improper cooling and thermal
damage, do not operate the enclosure unless all bays are
populated with a component or a blank.
