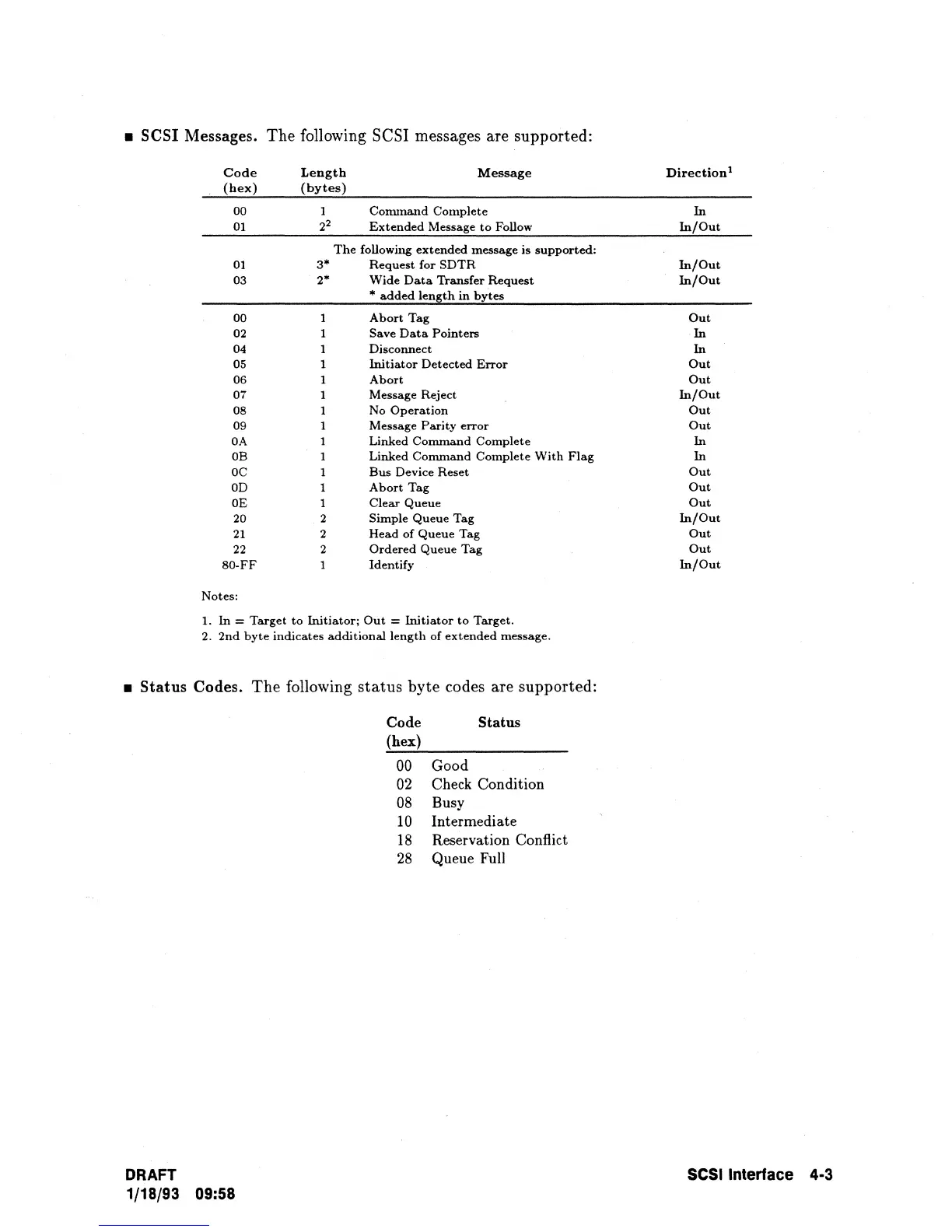

• SCSI Messages. The following SCSI messages are supported:
Code Length Message
(hex)
(bytes)
00 1 Conunand Complete
01
22
Extended Message to Follow
The following extended message is supported:
01
3*
Request for SDTR
03
2*
Wide Data Transfer Request
* added length in bytes
00 1
Abort Tag
02
Save Data Pointers
04 1 Disconuect
05 1 Initiator Detected Error
06 1 Abort
07 1 Message Reject
08 1
No Operation
09 1 Message Parity error
OA
Linked Command Complete
OB
Linked Command Complete With Flag
OC 1 Bus Device Reset
OD 1 Abort Tag
OE 1
Clear Queue
20 2
Simple Queue Tag
21
2 Head of Queue Tag
22 2
Ordered Queue Tag
80-FF 1 Identify
Notes:
1. In = Target to Initiator; Out = Initiator to Target.
2. 2nd byte indicates additional length of extended message .
• Status Codes. The following status byte codes are supported:
DRAFT
1/18/93 09:58
Code
(hex)
00
02
08
10
18
28
Status
Good
Check Condition
Busy
Intermediate
Reservation Conflict
Queue Full
Direction!
In
In/Out
In/Out
In/Out
Out
In
In
Out
Out
In/Out
Out
Out
In
In
Out
Out
Out
In/Out
Out
Out
In/Out
SCSI Interface 4·3
