Technical Reference Guide 3ā13
Installing or Replacing Parts

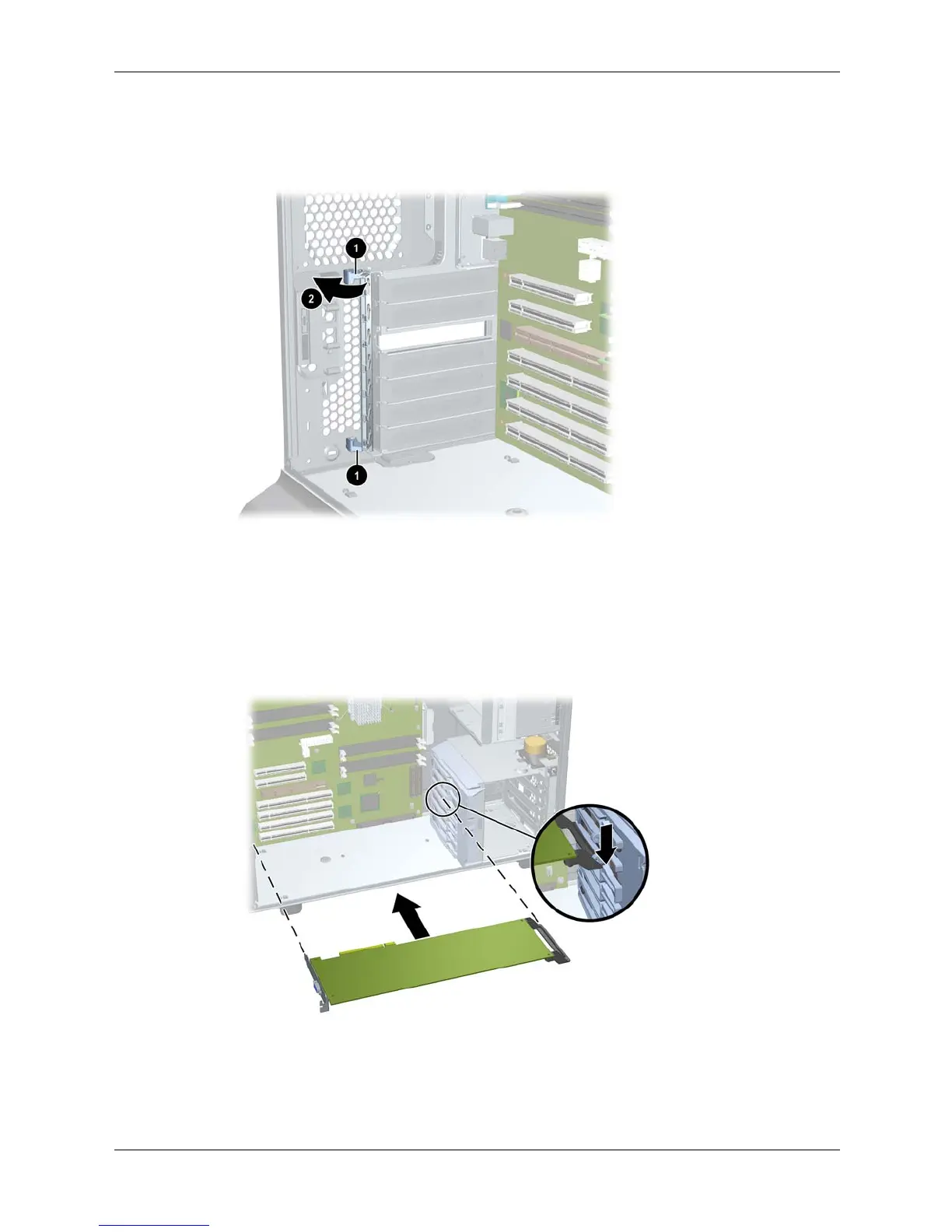

3. Open the PCI/AGP retainer clip:
ā Push in on the two blue levers at the ends of the PCI/AGP retainer clip 1 then rotate the
clip into the open position 2.
Opening the PCI/AGP retainer clip
4. Remove the card:
a. If the card is an audio card, unplug the connectors attached to the front control panel (see
figure on page 3-29).
b. If the card is a full length card, push the card edge stop to the side to allow the card to
slide out of the guide.
Full-length AGP or PCI card
