3–16 Technical Reference Guide
Installing or Replacing Parts
2. Install the card:
a. Grasp the edges of the new card and insert it into the slot.
b. If the card has a power connector, plug it in.

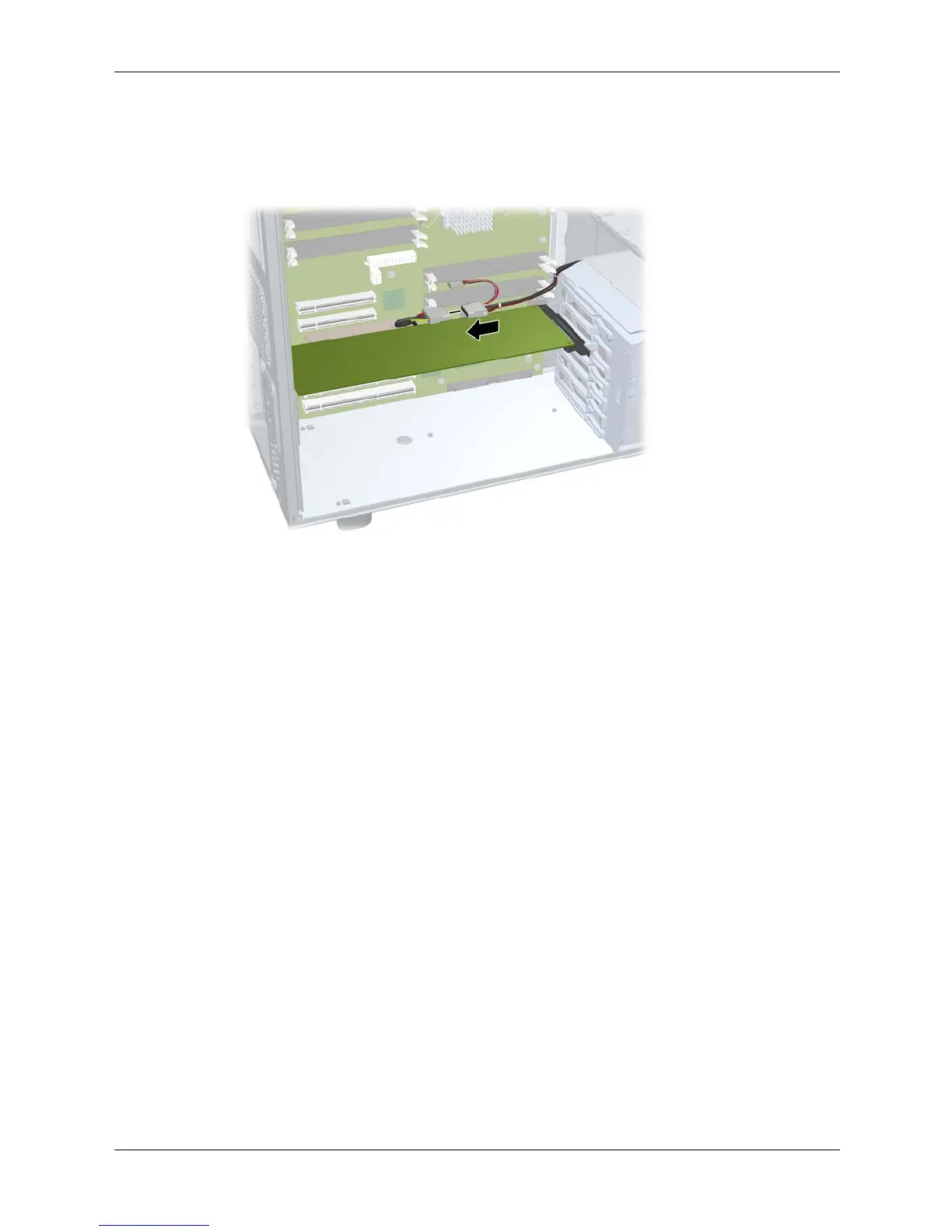

Plugging in a PCI or AGP card power connector
c. If the card is a full length card, the end of the card will automatically snap into place (not
shown).
3. Close the PCI/AGP retainer clip and press the two blue release snaps on the rear panel of the
system to lock it in place. (See the figure on page 3-13).
4. Replace the AGP retainer and system access panel and reconnect all cables.
5. Turn on the system and check the configuration using the BCH
Information menu
(page 2-6).
