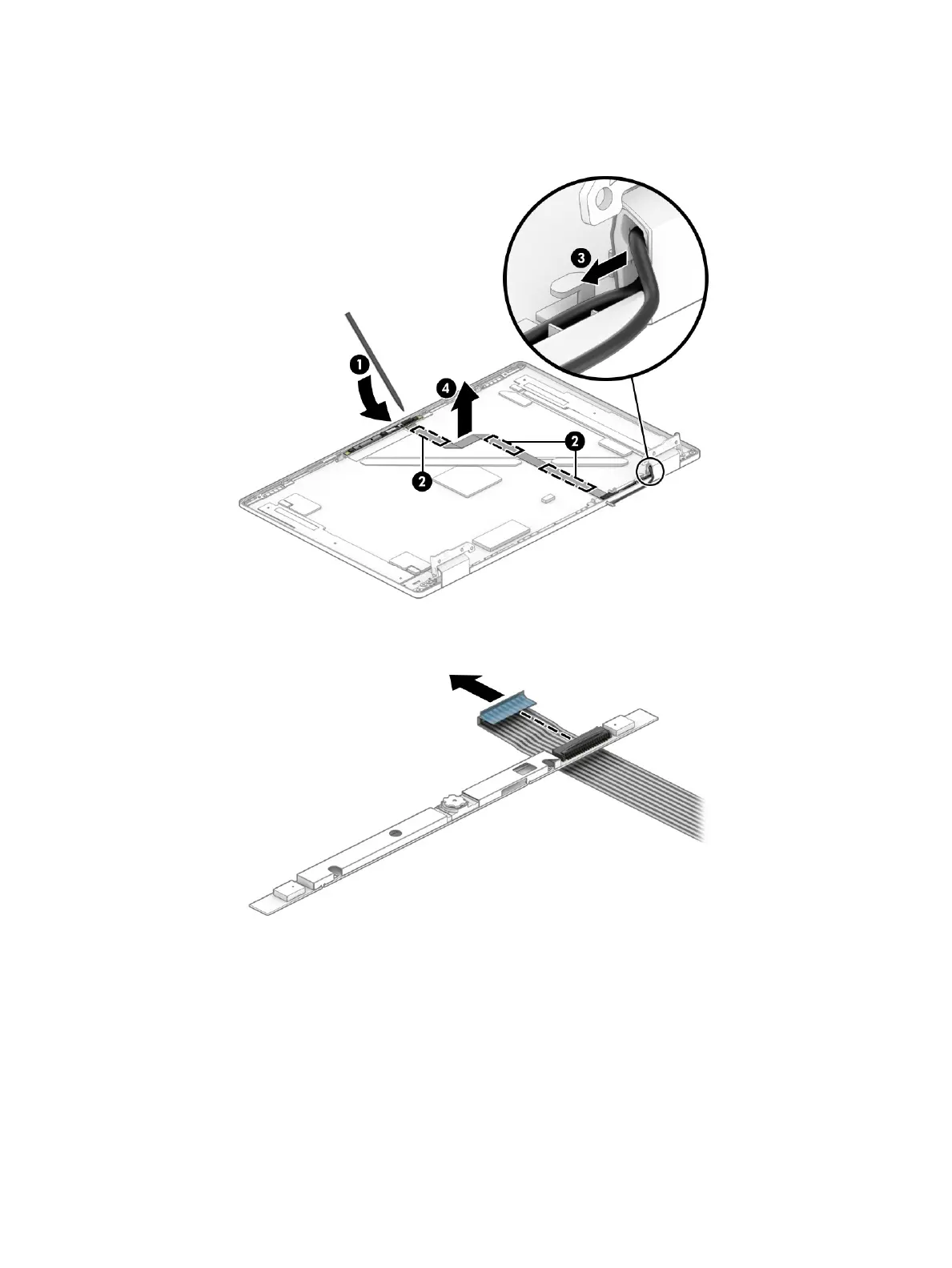

c. Remove the cable from the clips above the right hinge (3), and then remove the camera and cable
from the display back cover (4). The camera module is available as spare part number
M00442-001. The camera cable is available as spare part number M00310-001.
d. Disconnect the cable from the camera module.
Component replacement procedures 43
