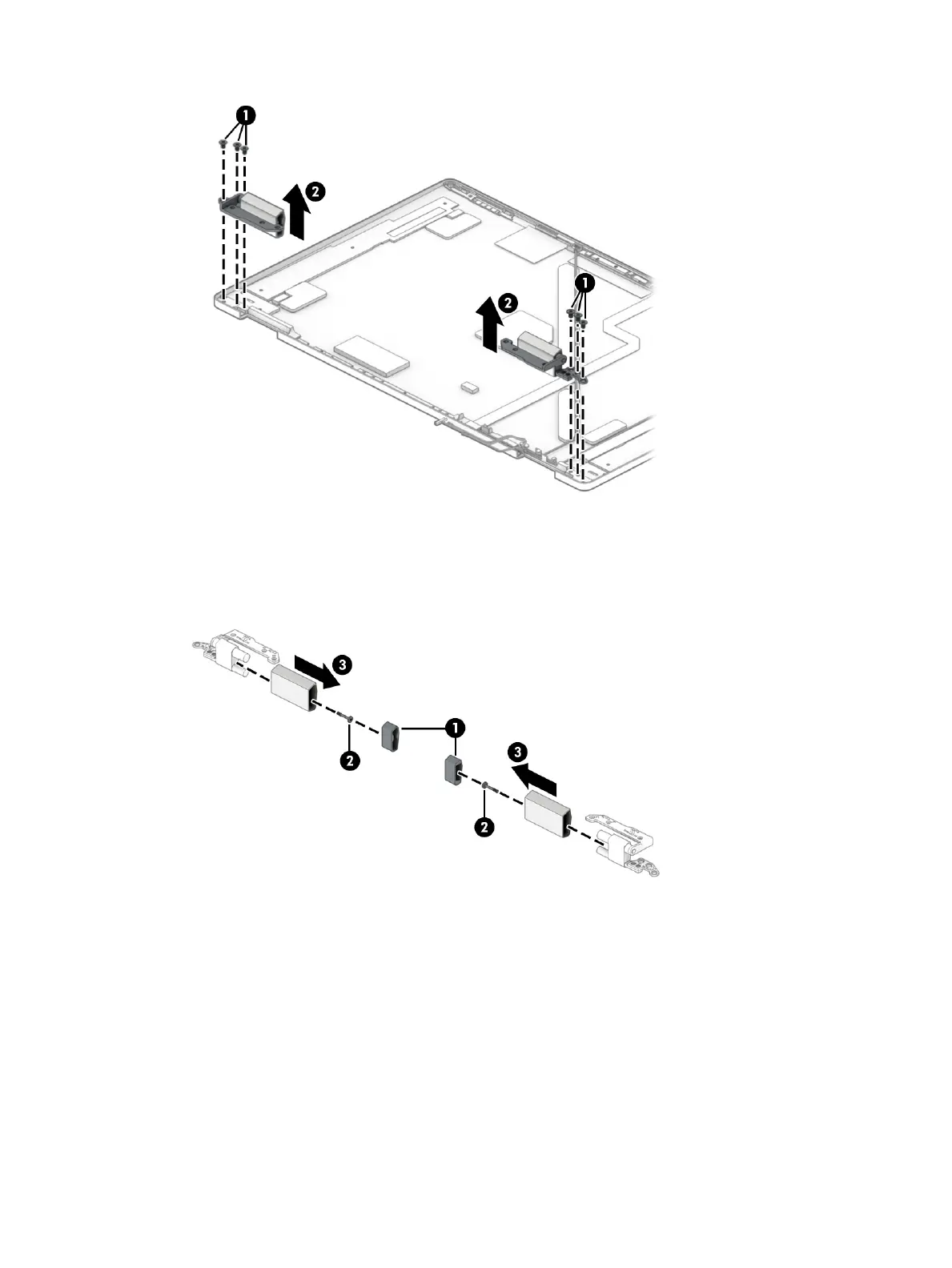

11. If you need to remove the hinge covers from the hinges, remove rubber insert from inside of hinge cover
(1), remove the Phillips M2.0 × 10.0 screw (2) from each hinge cover, and then pull the hinge covers o
the hinges (3).
The hinge covers are available as spare part number M00318-001.
12. If you need to remove the camera module and cable:
a. Use a thin tool to lift up evenly across the module and peel the module up from the display back
cover (1).
b. Peel the cable up from the inside of the display back cover (2).
42 Chapter 5 Removal and replacement procedures for authorized service provider parts
