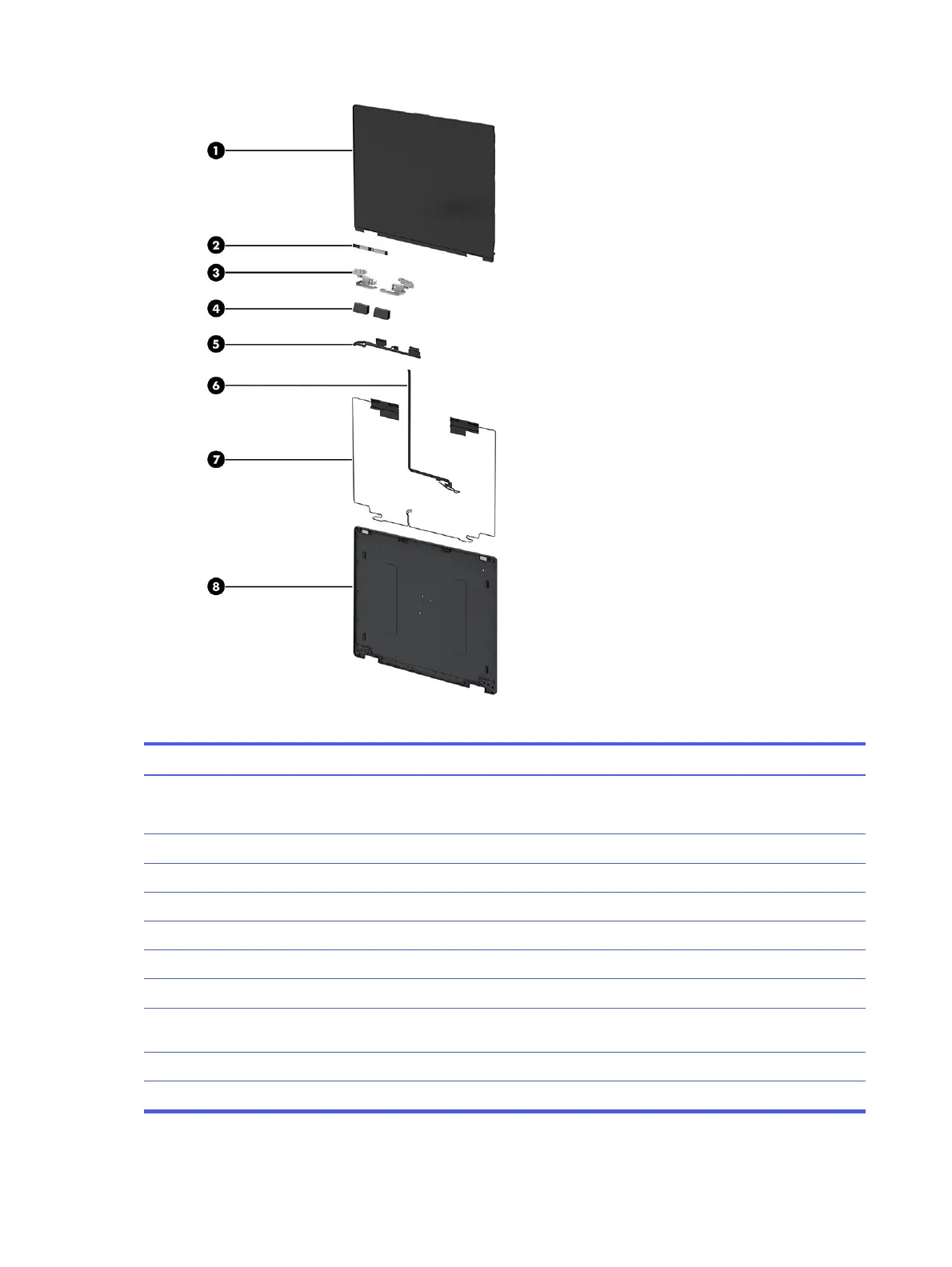

Table 3-2 Display component descriptions and part numbers
Item Component Spare part number
(1) Display panel (includes panel adhesive)
NOTE: The panel tape kit is available as spare part number N24896-001.
N24444-001
(2) Camera module N24437-001
(3) Hinges (includes left and right display hinges) N24426-001
(4) Hinge cover N24424-001
* Hinge cover rubber inserts N24429-001
(5) Display panel cable N24420-001
(6) Camera cable N24423-001
(7) Wireless antenna cables not available as a
spare part
(8) Display back cover (includes wireless antennas) N24418-001
*not illustrated
14 Chapter 3Illustrated parts catalog
