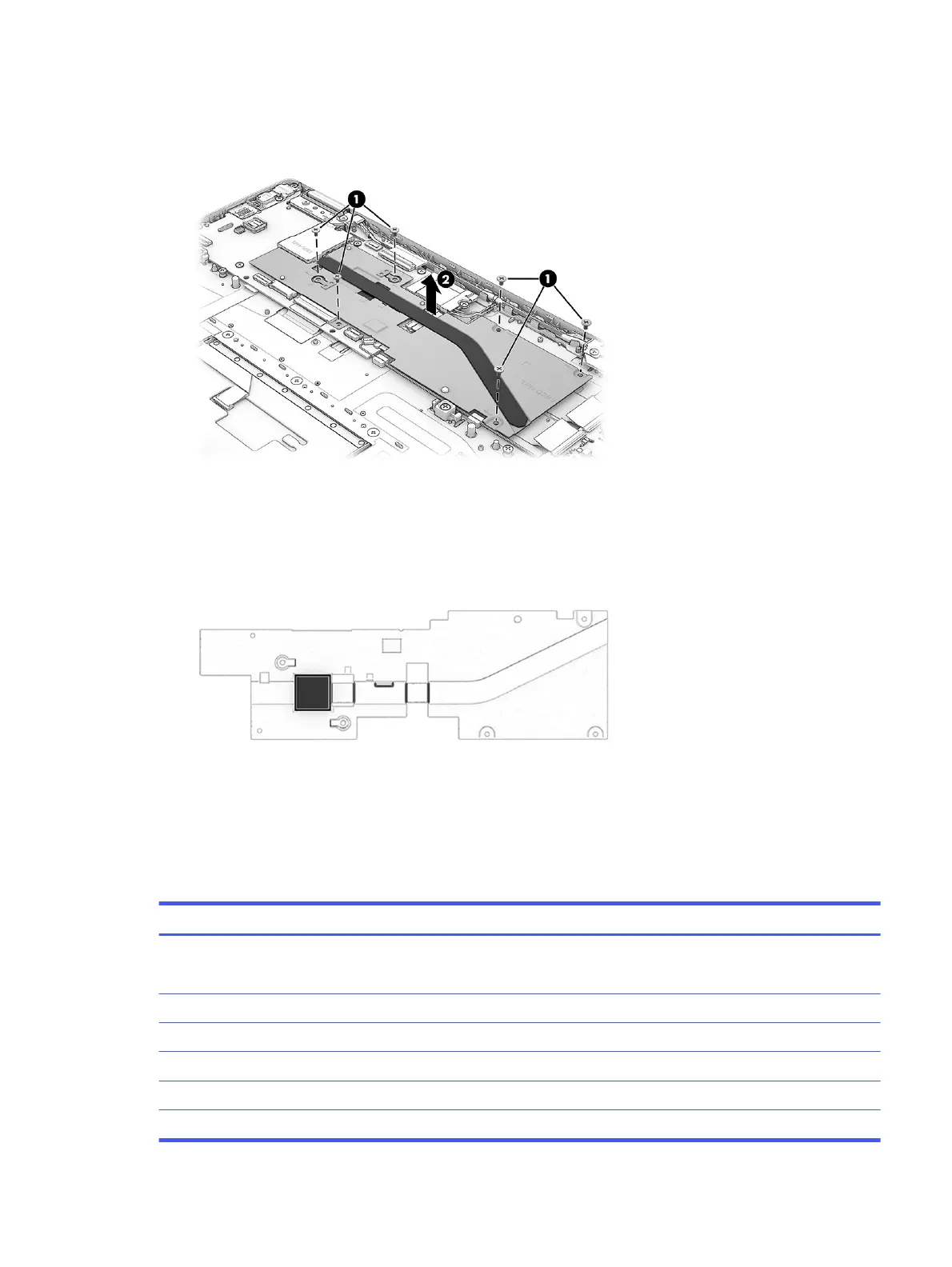

2. Lift the heat sink o the system board (2). Be sure to lift the heat sink evenly up o the system board.
Putting too much pressure on one side can cause the heat sink to bend.
3. Thoroughly clean the thermal material from the surfaces of the heat sink and the system board
components each time the heat sink is removed. Replacement thermal material is included with the heat
sink and system board spare part kits.
Install thermal paste on the heat sink in the location as shown in the following illustration.
To install the heat sink, reverse this procedure.
System board
To remove the system board, use these procedures and illustrations.
Table 5-10
System board descriptions and part numbers
Description Spare part number
System board (includes processor)
NOTE: The system board thermal pad is available using spare part number N24435-001.
MediaTek 1380 processor and 8 GB of system memory N24443-001
MediaTek 1380 processor and 4 GB of system memory N24442-001
MediaTek 1200 processor and 8 GB of system memory N24441-001
MediaTek 1200 processor and 4 GB of system memory N24439-001
MediaTek 1200 processor, 4 GB of system memory, 64 GB of eMMC storage N24440-001
System board 37
