7. Pull the cable out of the connector (2).

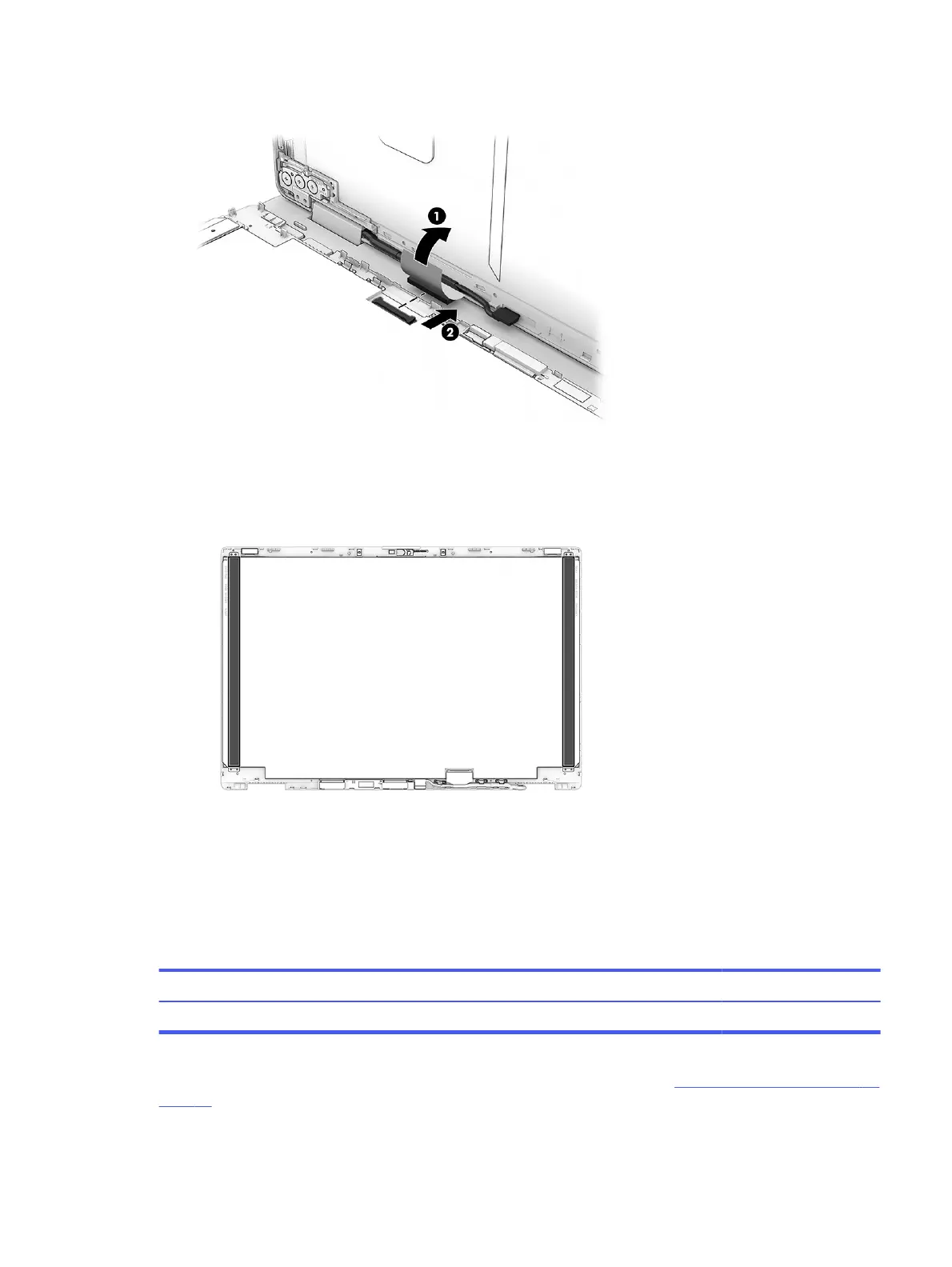

8. When installing a new display panel, be sure to install the tape in the locations on the display rear cover
that are shown in the following illustration.
To install the display panel, reverse the removal procedures.
Bottom cover
To remove the bottom cover, use this procedure and illustration.
Table 5-2
Bottom cover description and part number
Description Spare part number
Bottom cover N24419-001
Before removing the bottom cover, prepare the computer for disassembly (see Preparation for disassembly on
page 25).
Remove the bottom cover:
Bottom cover
