Access Panel
Description Spare part number
Access panel 646815-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 94).
2. If the computer is on a stand, remove the computer from the stand.
3. Lift up on the access panel handle (1) then lift the access panel off the computer (2).

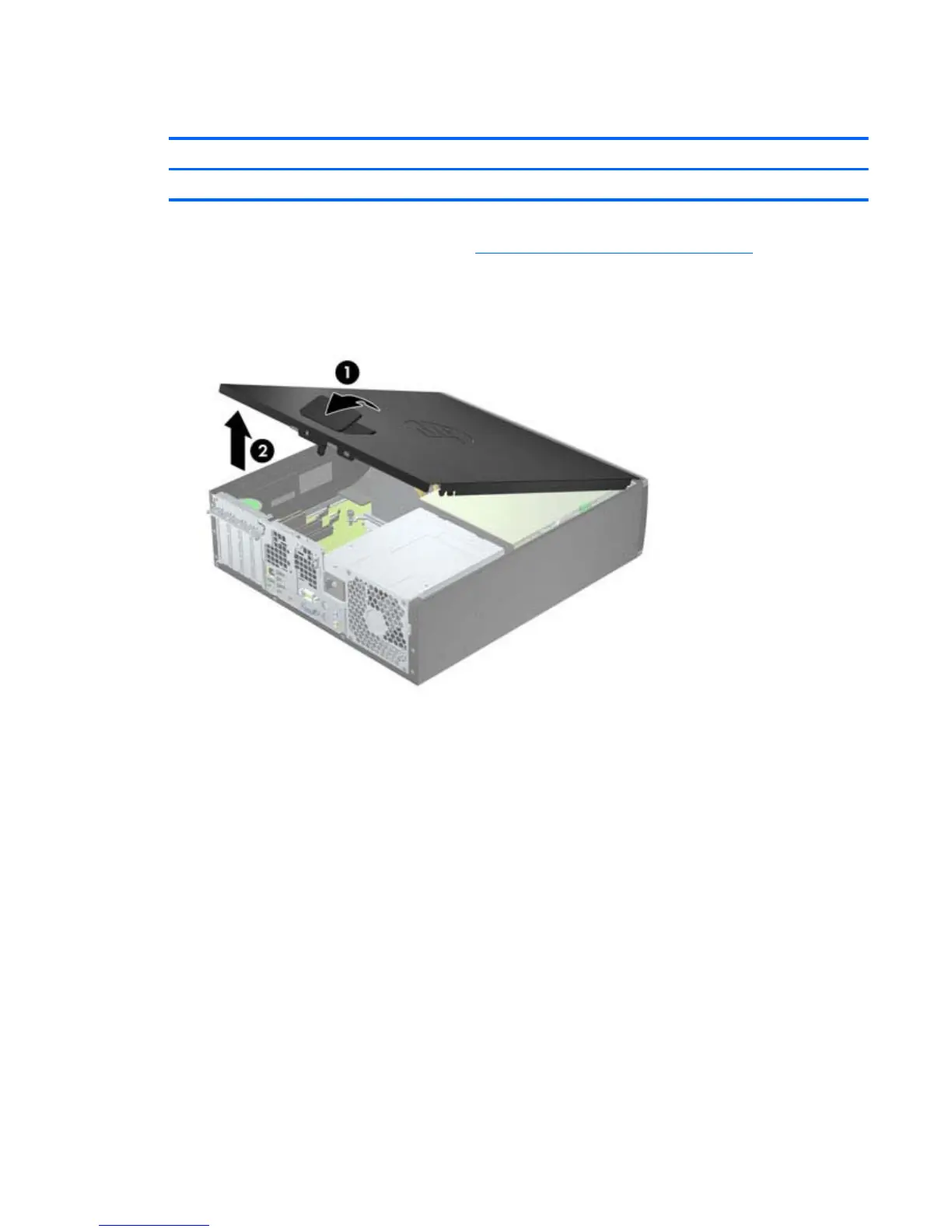

Figure 7-1 Removing the access panel
To install the access panel, reverse the removal procedure.
Access Panel 95

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Compaq Pro 6300 Series Microtower and is the answer not in the manual?

HP Compaq Pro 6300 Series Microtower Specifications

General IconGeneral
Form FactorMicrotower
ProcessorIntel Core i3/i5/i7
ChipsetIntel Q75 Express
MemoryUp to 32 GB DDR3
Storage256 GB Solid State Drive
GraphicsIntel HD Graphics or optional discrete graphics
Optical DriveDVD-ROM
Operating SystemWindows 7 Professional, Windows 8 Pro, FreeDOS
PortsUSB 2.0/3.0, VGA, DisplayPort
NetworkIntegrated Intel 82579LM Gigabit Network Connection
AudioHigh Definition Audio with Realtek ALC221 codec
Power Supply320W
Expansion Slots1 PCIe x1
WeightApprox. 16.5 lbs
