HP Compaq Pro 6300 Series Microtower User Manual

System Board Connections
Refer to the following illustrations and tables to identify the system board connectors for your model.

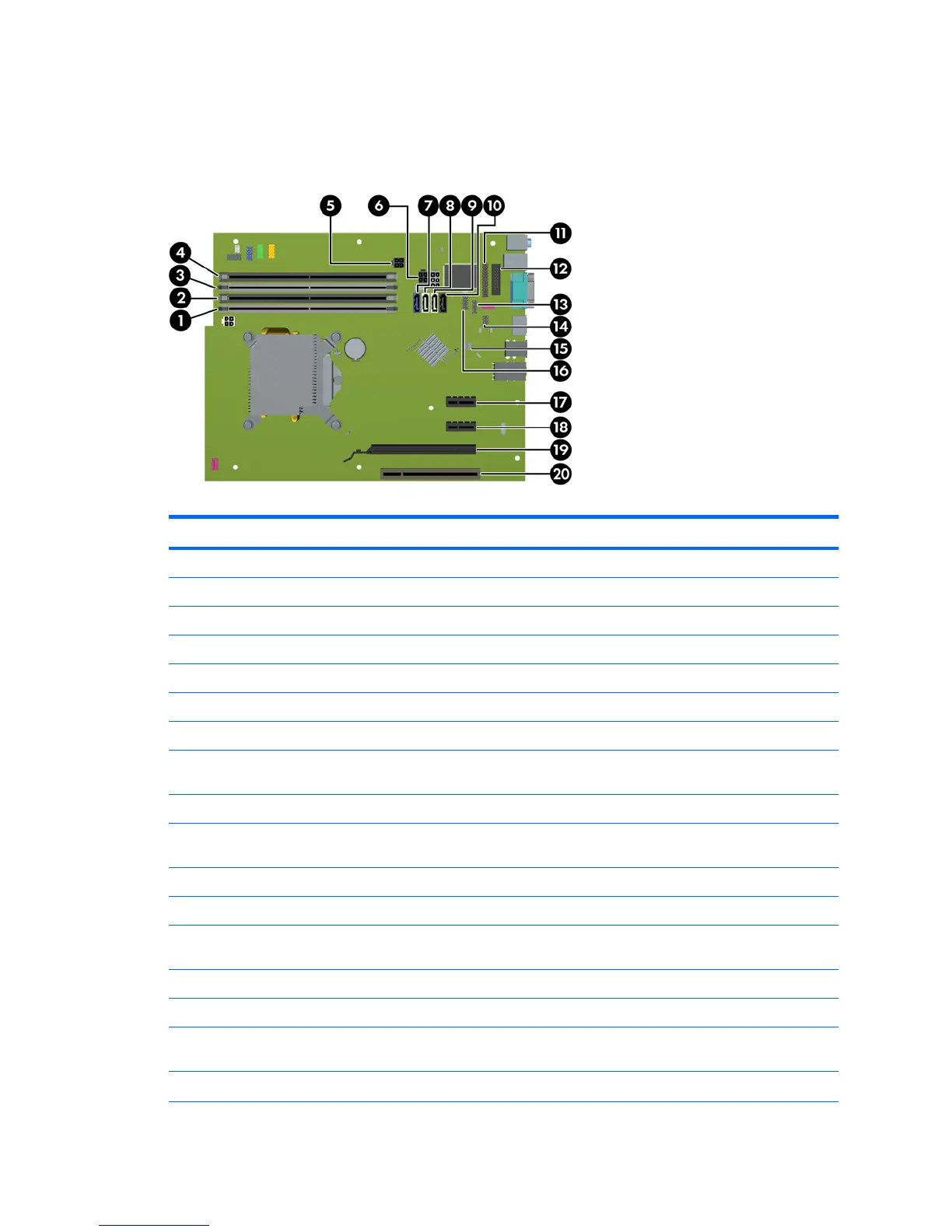

Figure 6-12 System Board Connections
Table 6-1 System Board Connections
No. System Board Connector System Board Label Color Component
1 DIMM4 (Channel A) DIMM4 white Memory Module
2 DIMM3 (Channel A) DIMM3 black Memory Module
3 DIMM2 (Channel B) DIMM2 white Memory Module
4 DIMM1 (Channel B) DIMM1 black Memory Module
5 Power SATAPWR1 black SATA Optical Drives
6 Power SATAPWR0 black SATA Hard Drives
7 SATA 3.0 SATA0 dark blue 1st Hard Drive
8 SATA 2.0 SATA1 white 2nd Hard Drive, or 2nd Optical Drive
if an eSATA Adapter Cable exists
9 SATA 2.0 SATA2 white 1st Optical Drive
10 eSATA ESATA black eSATA Adapter Cable, or 2nd
Optical Drive
11 Parallel Port PAR black Parallel Port
12 Serial Port COMB black Serial Port
13 USB MEDIA black USB Device, such as a Media Card
Reader
14 Hood Lock HLCK black Hood Lock
16 Hood Sensor HSENSE white Hood Sensor
15 USB MEDIA2 black USB Device, such as a Media Card
Reader
17 PCI Express x1 X1PCIEXP1 black Expansion Card
System Board Connections 67

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
