HP Compaq Pro 6300 Series Microtower User Manual

Small Form Factor (SFF) Front Panel Components
Drive configuration may vary by model. Some models have a bezel blank covering one or more drive
bays.

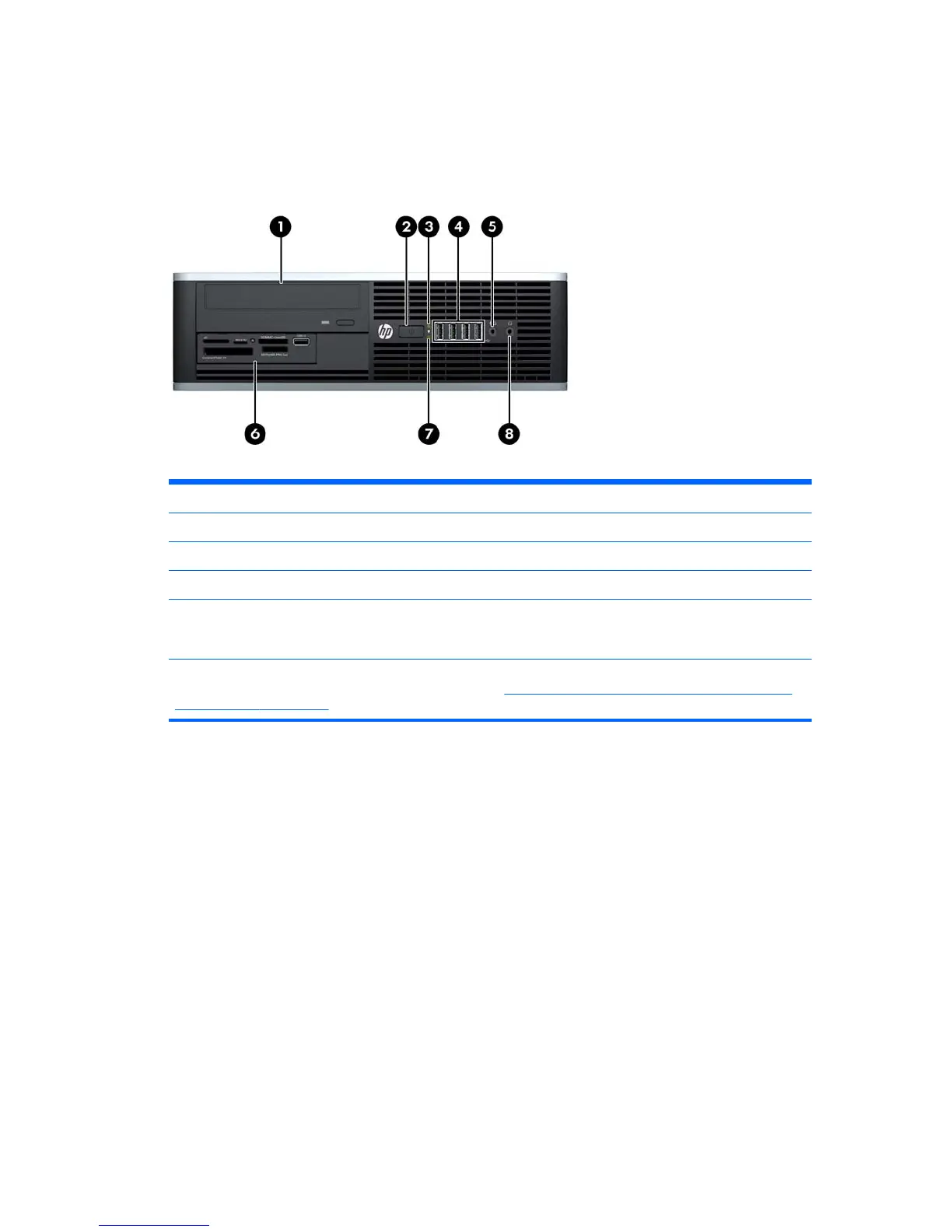

Figure 1-3 Front Panel Components
Table 1-2 Front Panel Components
1 5.25-inch Optical Drive 5 Microphone/Headphone Connector
2 Dual-State Power Button 6 3.5-inch Media Card Reader (optional)
3 Power On Light 7 Hard Drive Activity Light
4 USB (Universal Serial Bus) Ports 8 Headphone Connector
NOTE: When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if
you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the
connector at any time by double-clicking the Realtek HD Audio Manager icon in the Windows taskbar.
NOTE: The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with
the computer and it is displaying a diagnostic code. Refer to
Interpreting POST Diagnostic Front Panel LEDs and
Audible Codes on page 186 to interpret the code.
Small Form Factor (SFF) Front Panel Components 3

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
