HP Compaq Pro 6300 Series Microtower User Manual

Front Fan Assembly
Description Spare part number
Front fan 645327-001
The front fan assembly is attached to the front of the chassis.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 94).
2. Remove the access panel (
Access Panel on page 95).
3. Remove the front bezel (
Front Bezel on page 96).
4. Remove the baffle (
Fan duct on page 119).
5. Disconnect the fan cable from the red/brown system board connector labeled CHFAN.

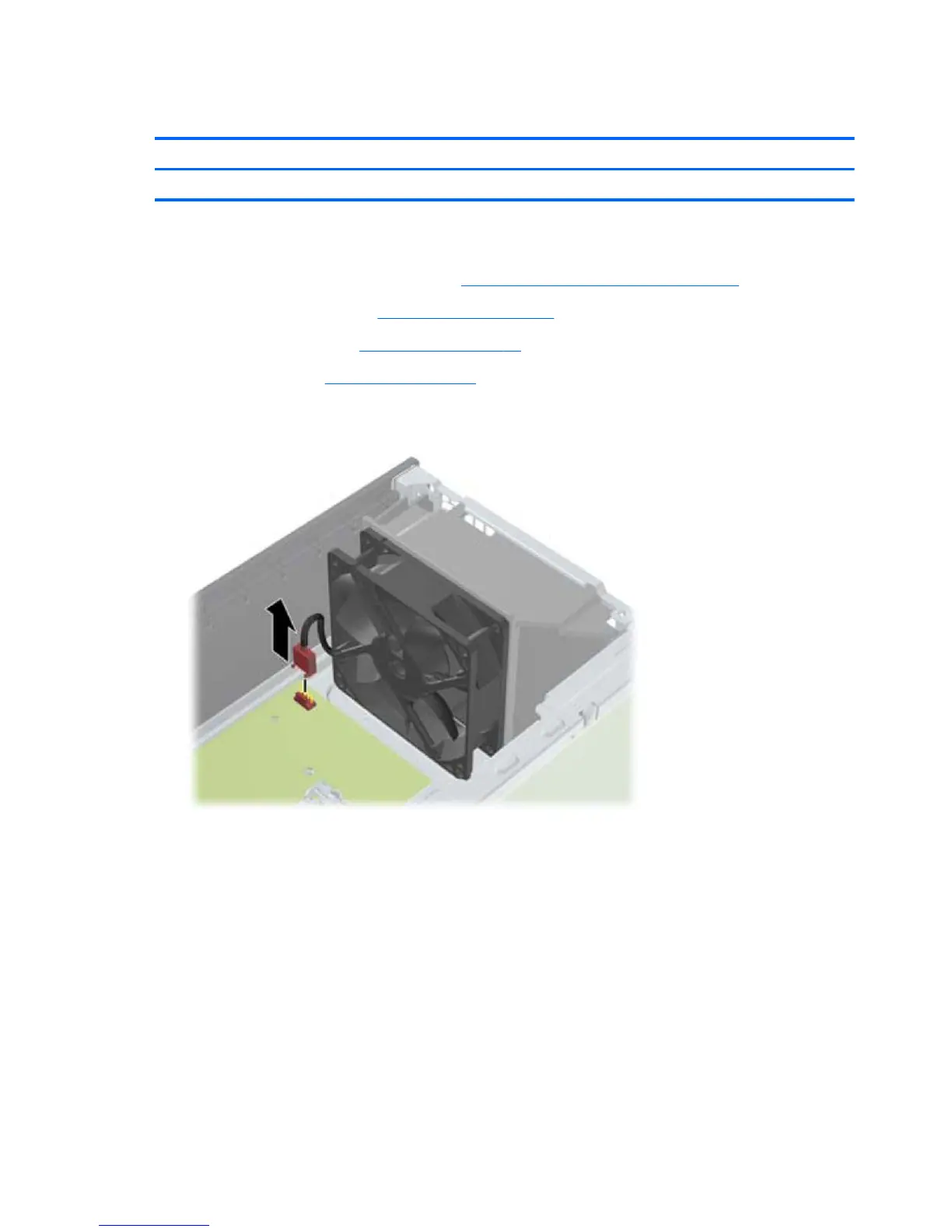

Figure 7-28 Disconnecting the front fan cable
6. Press the tabs that secure the fan assembly to the front of the chassis (1).
120 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
