HP Compaq Pro 6300 Series Microtower User Manual

Small Form Factor (SFF) Rear Panel Components

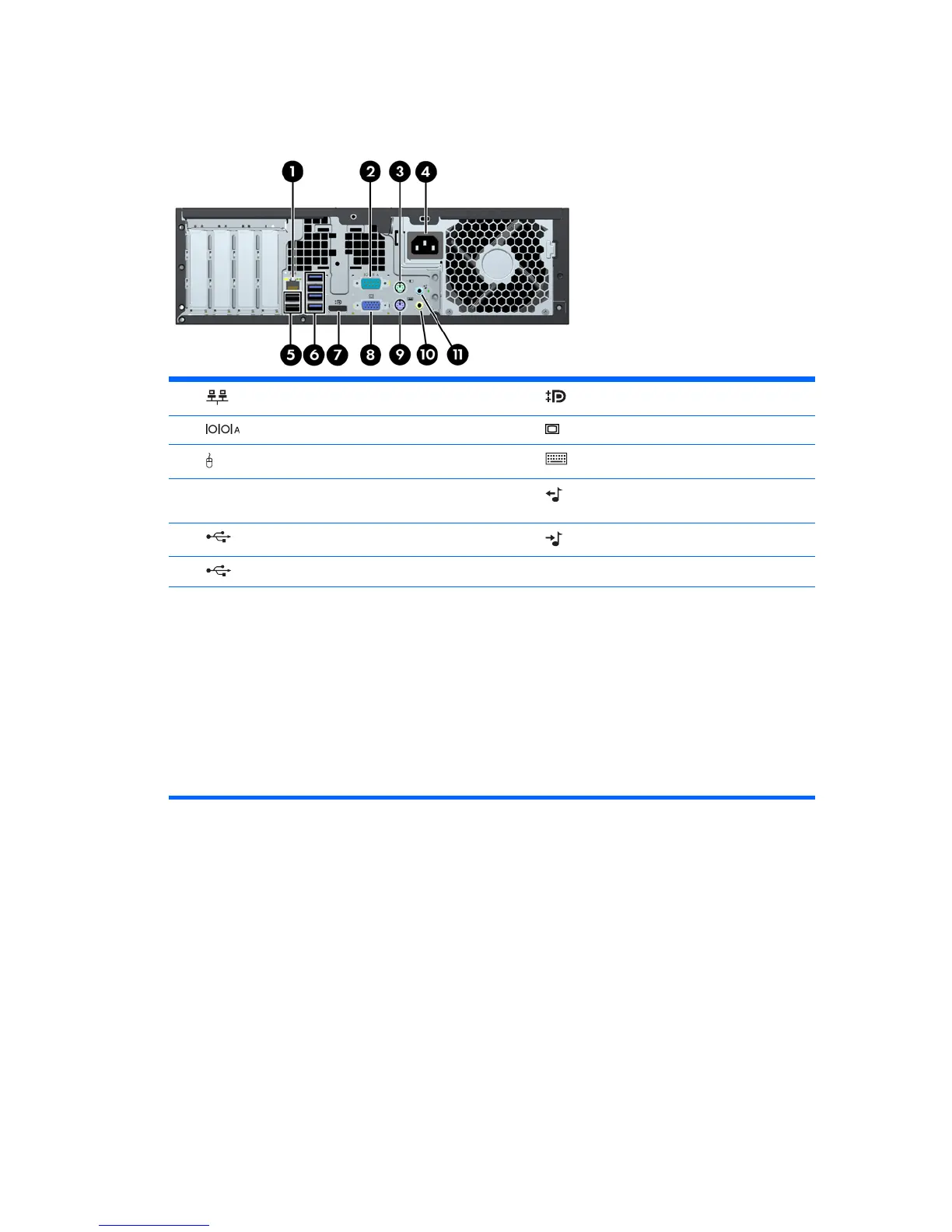

Figure 1-5 Rear Panel Components
1 RJ-45 Network Connector 7 DisplayPort Monitor Connector
2
Serial Connector 8 VGA Monitor Connector
3
PS/2 Mouse Connector (green) 9 PS/2 Keyboard Connector (purple)
4 Power Cord Connector 10
Line-Out Connector for powered audio
devices (green)
5
USB 2.0 ports (black) 11 Line-In Audio Connector (blue)
6
USB 3.0 ports (blue)
NOTE: USB 3.0 ports are blue; USB 2.0 ports are black.
An optional second serial port and an optional parallel port are available from HP.
When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use
the connector for a line-in device or a microphone. You can reconfigure the connector at any time by double-
clicking the Realtek HD Audio Manager icon in the Windows taskbar.
The monitor connectors on the system board are inactive when a graphics card is installed in the computer.
If a graphics card is installed into one of the motherboard slots, the connectors on the graphics card and the
system board may be used at the same time. Some settings may need to be changed in Computer Setup to use
both connectors.
Small Form Factor (SFF) Rear Panel Components 5

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
