Fan duct
Description Spare part number
Fan duct 636921-001
The fan duct sits between the front fan and the heat sink.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 94).
2. Remove the access panel (
Access Panel on page 95).
3. Lift the fan duct straight up out of the chassis.

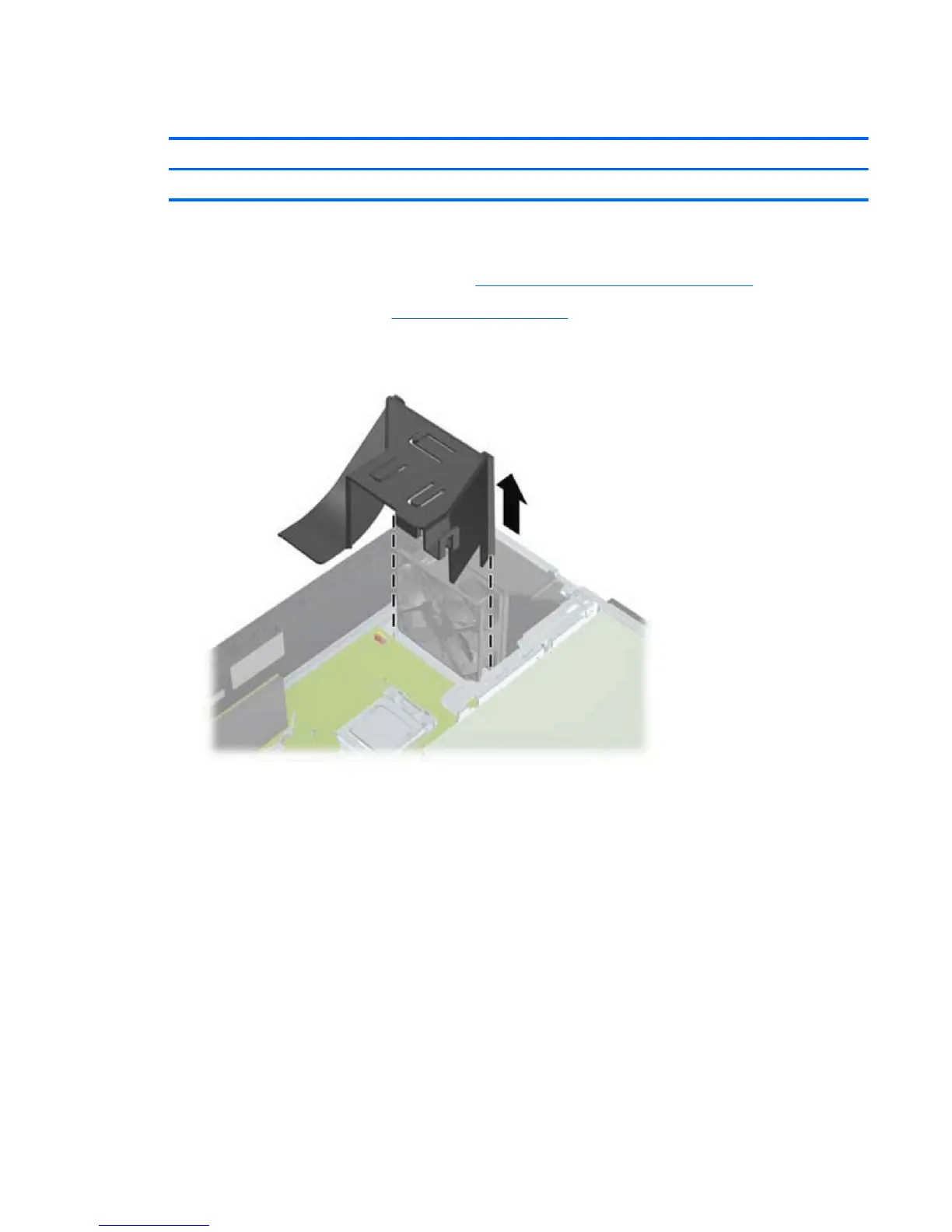

Figure 7-27 Removing the fan duct
To install the fan duct, reverse the removal procedure.
Fan duct 119
