HP Compaq Pro 6300 Series Microtower User Manual

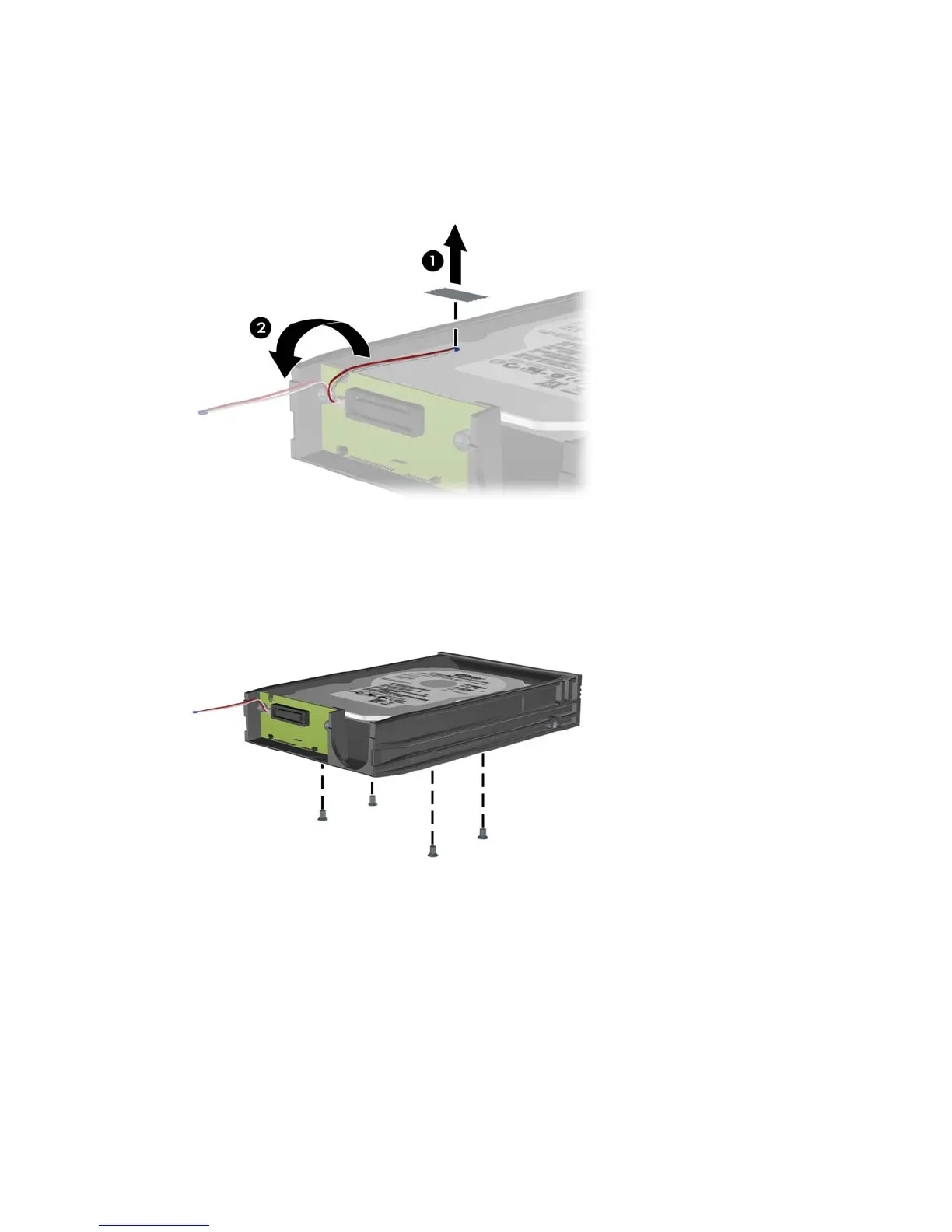

3. Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and
move the thermal sensor away from the carrier (2).
Figure B-2 Removing the Thermal Sensor
4. Remove the four screws from the bottom of the hard drive carrier.
Figure B-3 Removing the Security Screws
208 Appendix B Removing and Replacing a Removable 3.5-inch SATA Hard Drive

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
