3. Install guide screws on the sides of the drive. If you are installing a 2.5-inch drive, you must
install the drive in an adapter bracket.
NOTE: The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are
installed on the exterior of the hard drive bays. The HP-supplied isolation mounting guide screws
are silver and blue. Refer to
Drives on page 68 for an illustration of the extra 6-32 isolation
mounting guide screws location.
If you are replacing a drive, transfer the guides screws from the old drive to the new one.
●
If you are installing a 3.5-inch hard drive, install four isolation mounting guide screws (two
on each side of the drive).

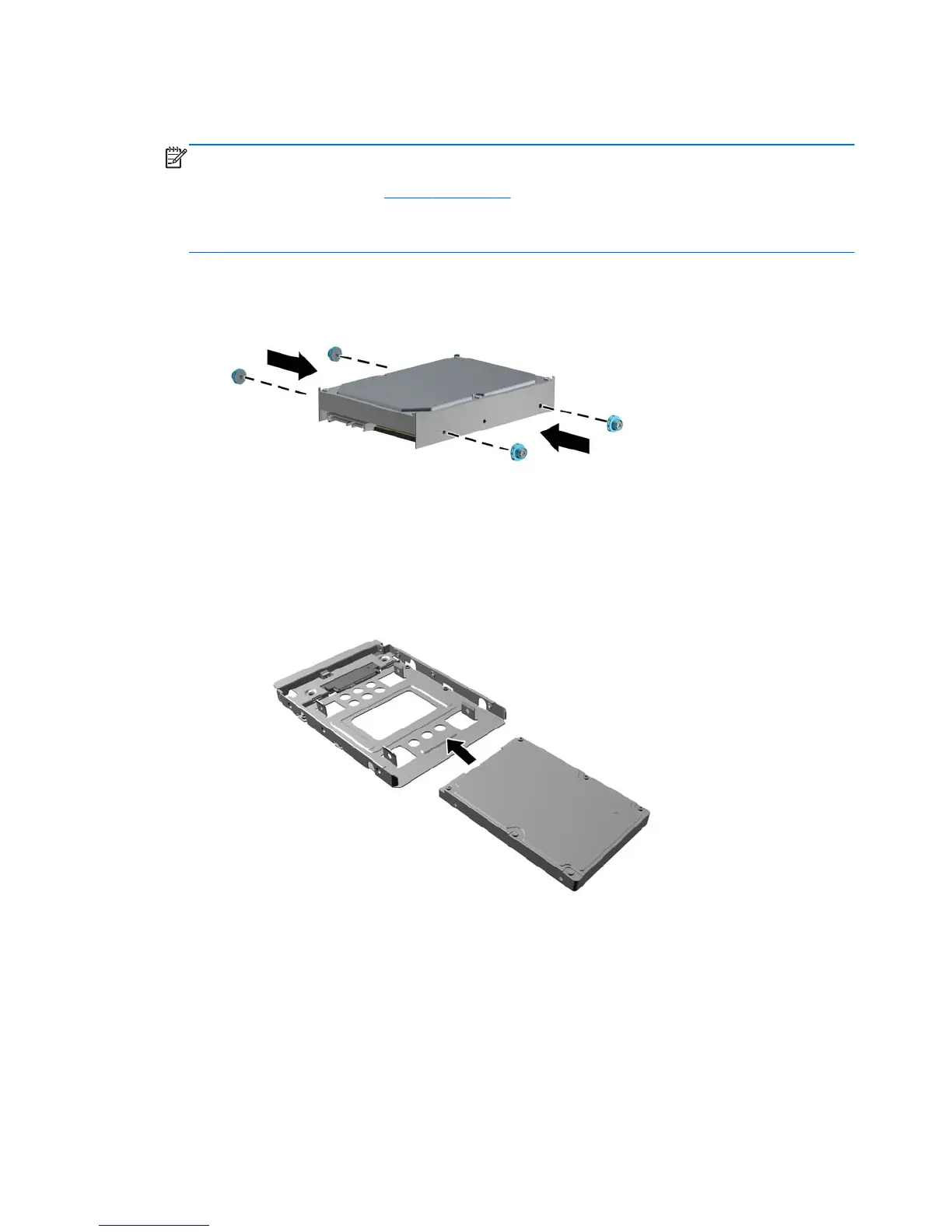

Figure 6-21 Installing Isolation Mounting Guide Screws in a 3.5-inch Drive
●
If you are installing a 2.5-inch hard drive:
◦
Slide the drive into the bay adapter bracket, ensuring the connector on the drive is fully
inserted into the connector on the adapter bracket.
Figure 6-22 Sliding the 2.5-inch Drive in the Adapter Bracket
76 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

HP Compaq Pro 6300 Series Microtower Specifications

General

Form Factor	Microtower
Processor	Intel Core i3/i5/i7
Chipset	Intel Q75 Express
Memory	Up to 32 GB DDR3
Storage	256 GB Solid State Drive
Graphics	Intel HD Graphics or optional discrete graphics
Optical Drive	DVD-ROM
Operating System	Windows 7 Professional, Windows 8 Pro, FreeDOS
Ports	USB 2.0/3.0, VGA, DisplayPort
Network	Integrated Intel 82579LM Gigabit Network Connection
Audio	High Definition Audio with Realtek ALC221 codec
Power Supply	320W
Expansion Slots	1 PCIe x1
Weight	Approx. 16.5 lbs
