5–6 Maintenance and Service Guide
Removal and Replacement Procedures
5.4 Hard Drive
1. Prepare the computer for disassembly (refer to Section 5.3).
2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the
hard drive cover to the computer.
3. Lift the right side of the cover 2 and swing it to the left.
4. Remove the hard drive cover.
✎
The hard drive cover is included in the Plastics Kit, spare part
number 431428-001.

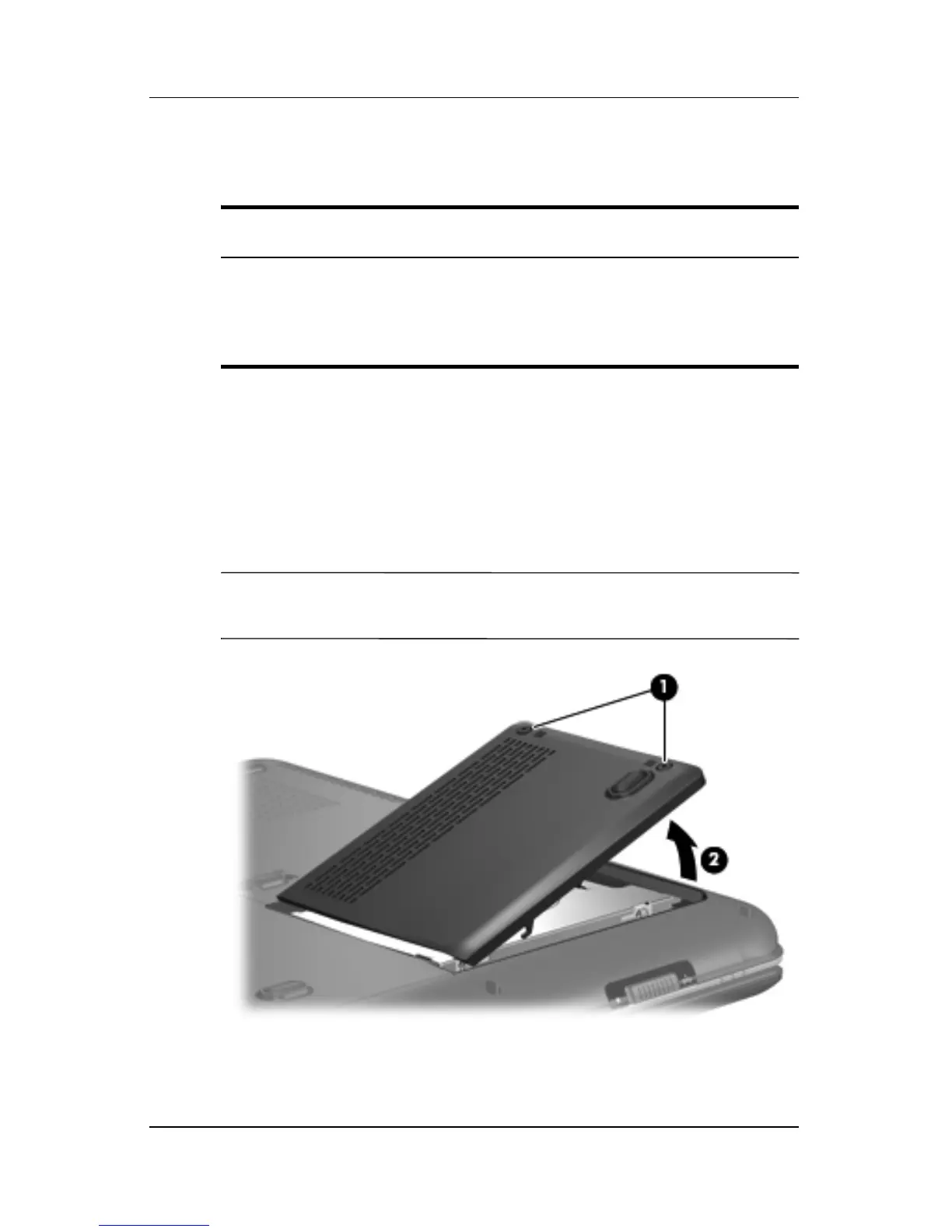

Removing the Hard Drive Cover
Hard Drive Spare Part Number Information
5400-rpm, 120-GB
5400-rpm, 100-GB
5400-rpm, 80-GB
5400-rpm, 60-GB
431407-001
431406-001
431405-001
431404-001
