5–8 Maintenance and Service Guide
Removal and Replacement Procedures

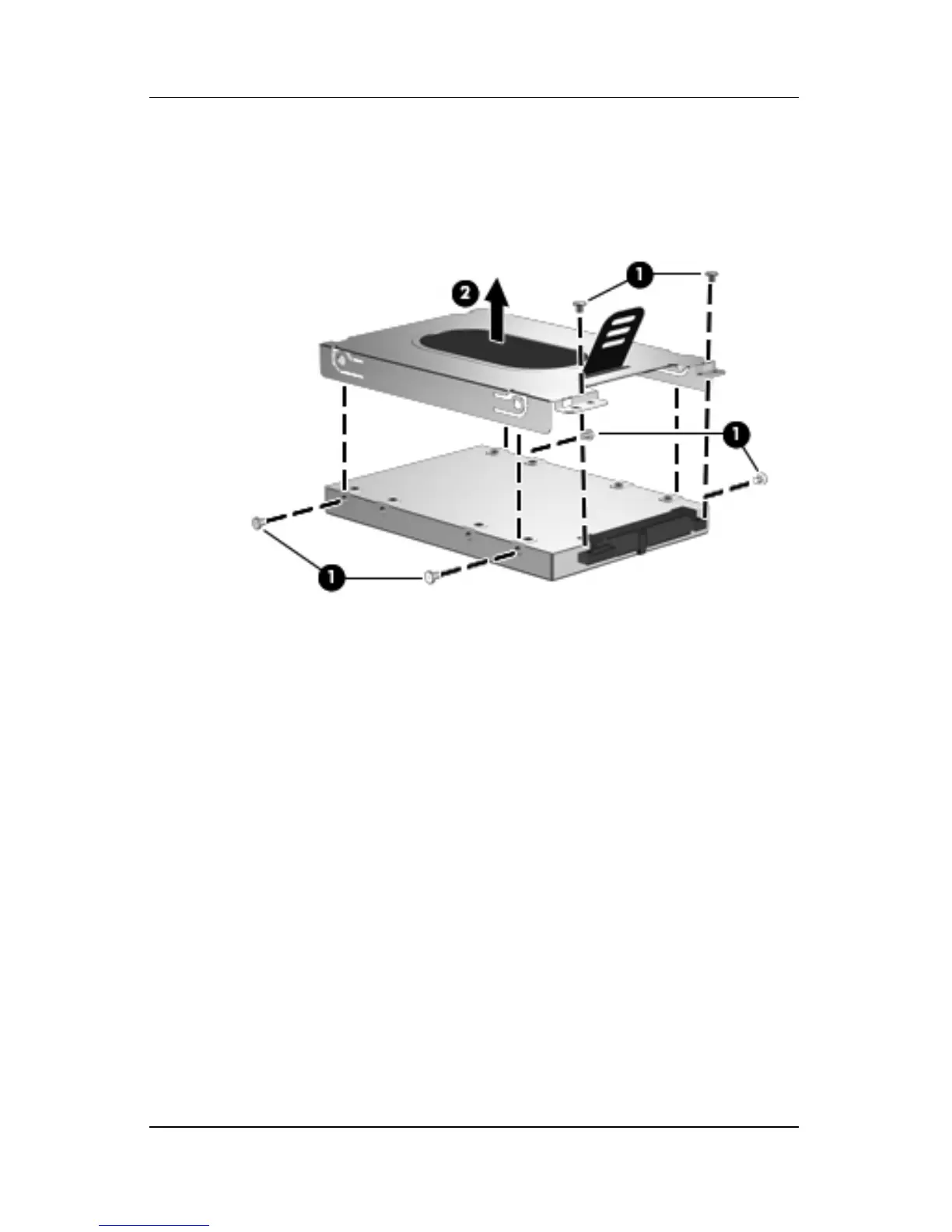

7. Remove the six Phillips PM3.0×3.0 screws 1 that secure the
hard drive frame to the hard drive.
8. Lift the frame 2 straight up to remove if from the hard drive.
Removing the Hard Drive Frame
Reverse the above procedure to install and reassemble the
hard drive.
