Removal and Replacement Procedures
Maintenance and Service Guide 5–57
3. Disconnect the fan cable 1 from the system board.
4. Remove the four Phillips PM2.5×5.0 screws 2 that secure the
fan/heat sink assembly to the system board.
5. Remove the fan/heat sink assembly 3.

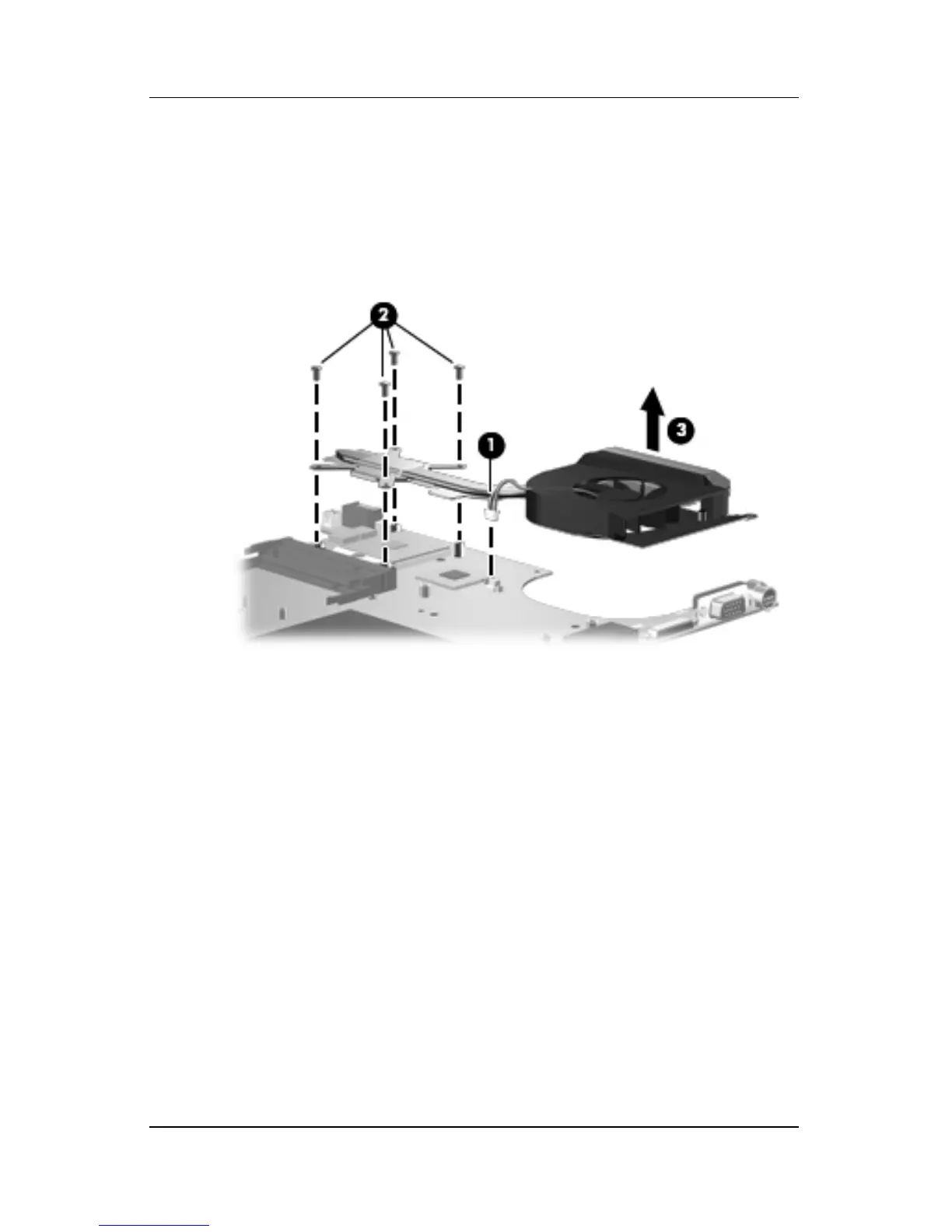

Removing the Fan/Heat Sink Assembly
