A–8 Maintenance and Service Guide
Screw Listing

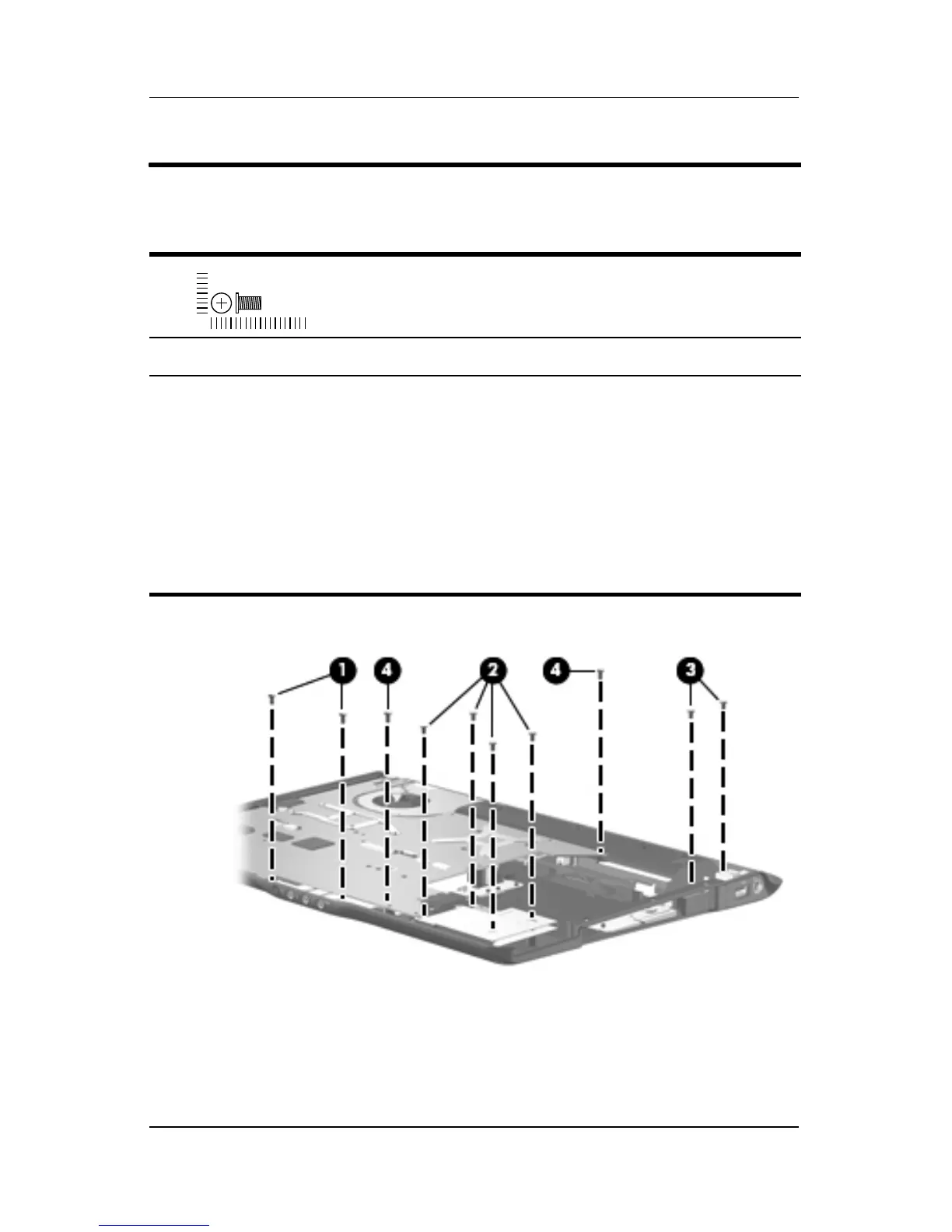

Phillips PM2.5×5.0 Screw Locations
Table A-3
Phillips PM2.5×5.0 Screw
(Continued)
Color Qty. Length Thread
Head
Width
Silver 27 5.0 mm 2.5 mm 5.0 mm
Where used:
1 Two screws that secure the audio board to the computer (documented in
Section 5.16)
2 Four screws that secure the ExpressCard assembly to the system board
(documented in Section 5.18)
3 Two screws that secure the USB/power connector board to the computer
(documented in Section 5.19)
4 Two screws that secure the system board to the computer (documented in
Section 5.20)
