A–10 Maintenance and Service Guide
Screw Listing

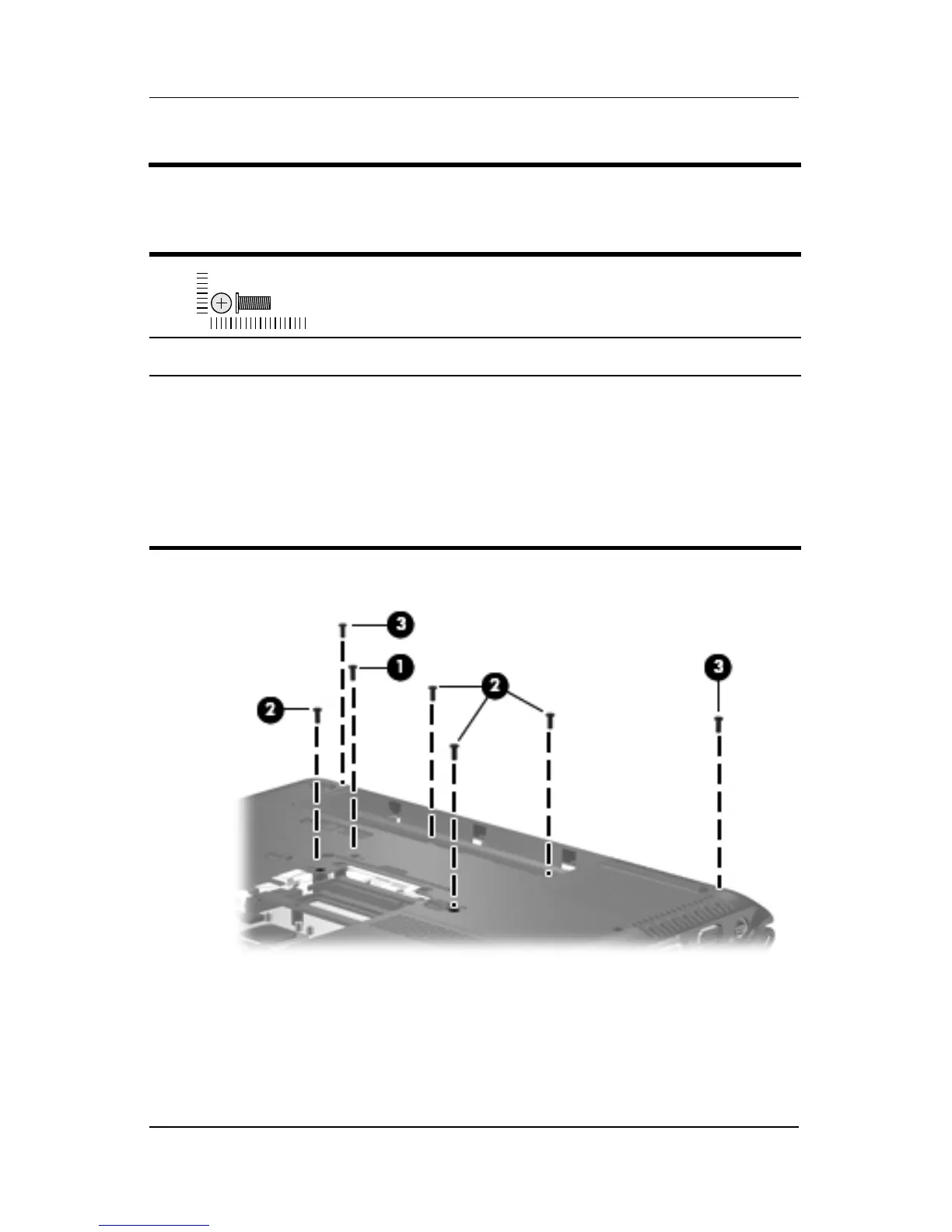

Phillips PM2.5×7.0 Screw Locations
Table A-4
Phillips PM2.5×7.0 Screw
Color Qty. Length Thread
Head
Width
Black 26 7.0 mm 2.5 mm 5.0 mm
Where used:
1 One screw that secures the optical drive to the computer (documented in
Section 5.9)
2 Four screws that secure the keyboard to the computer (documented in
Section 5.11)
3 Two screws that secure the display assembly to the computer (documented in
Section 5.14)
