Power board
The power board part number is 755.06704.0001 or refer to page 9.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the power board:

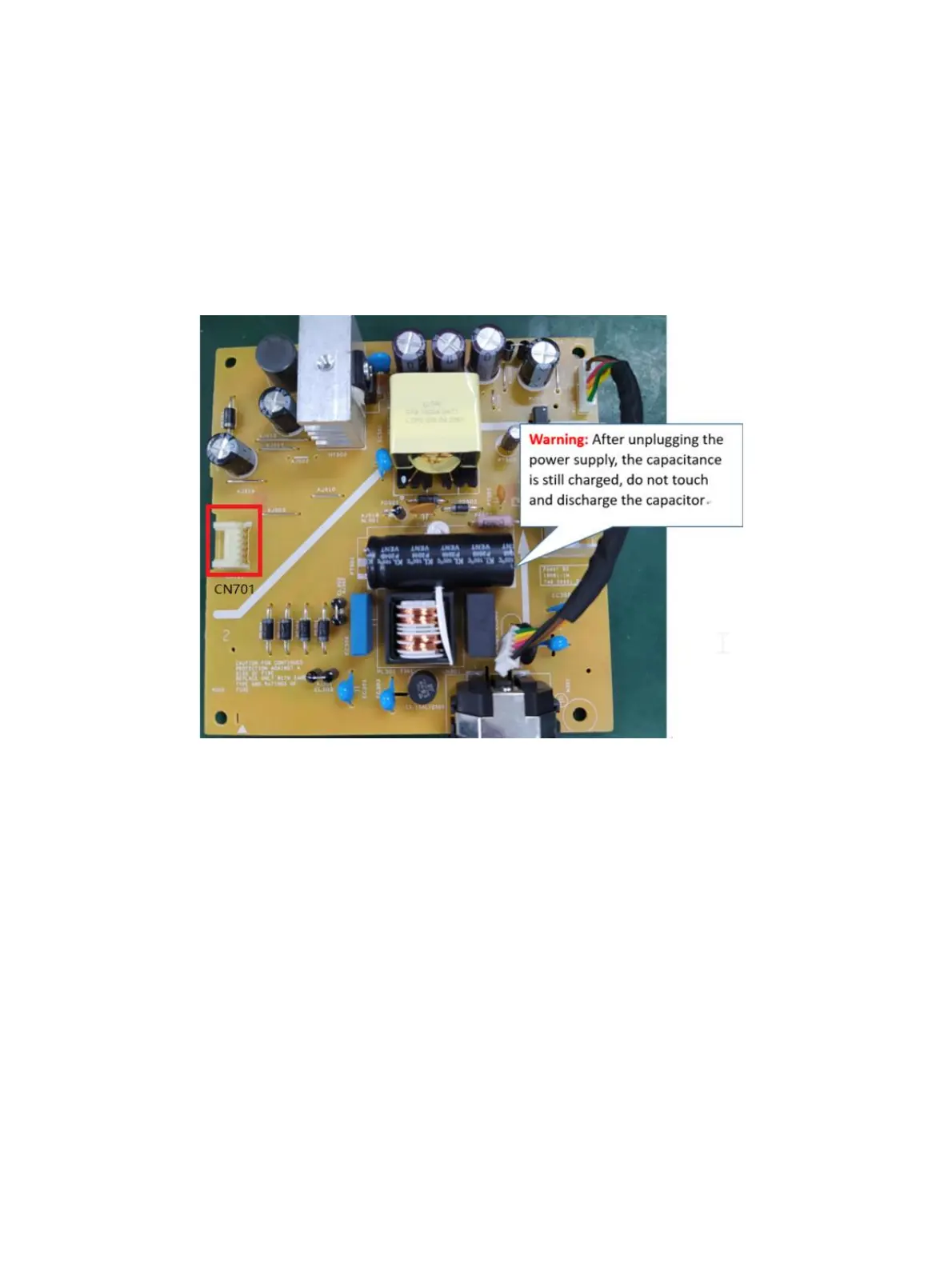

1) The HP E23&E24 G4 power board connector position is as follows:
CN701 Wistron P/N: 021.60237.0106
2) Locate the part number location on the board.
