16
Connector repair
This procedure includes HDMI, Display Port, USB-B, USB-A connectors.

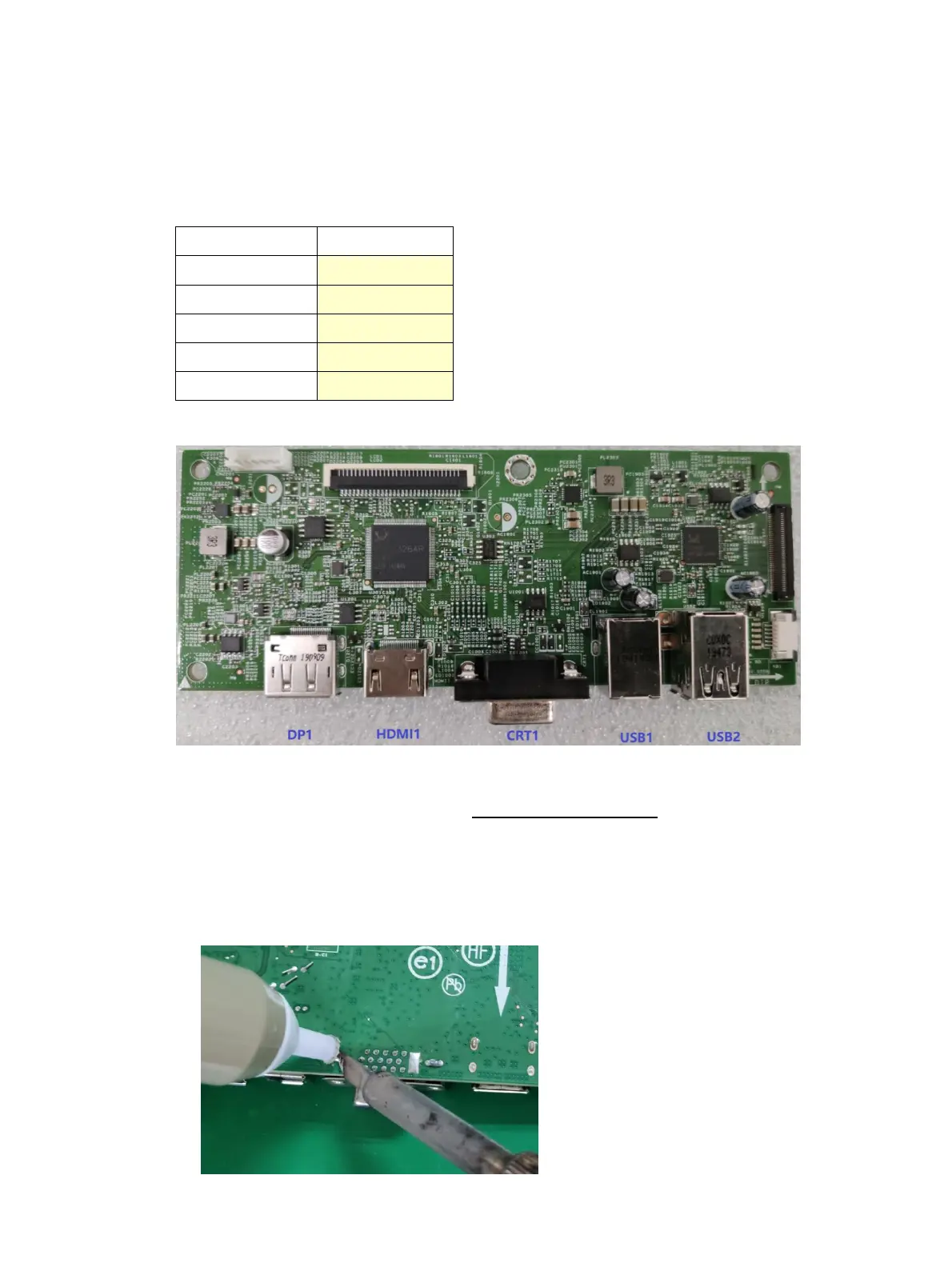

The connectors are on the main board (board part number 7ZB.06701.0006).
The connector identifiers are as follows:
Connector
Location
D-Sub
CRT1
HDMI
HDMI1
DP
DP1
USB-B
USB1
USB-A
USB2
Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
D-Sub connector CRT1
Repair the D-Sub connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
