HP E24 G5 - Page 14

11

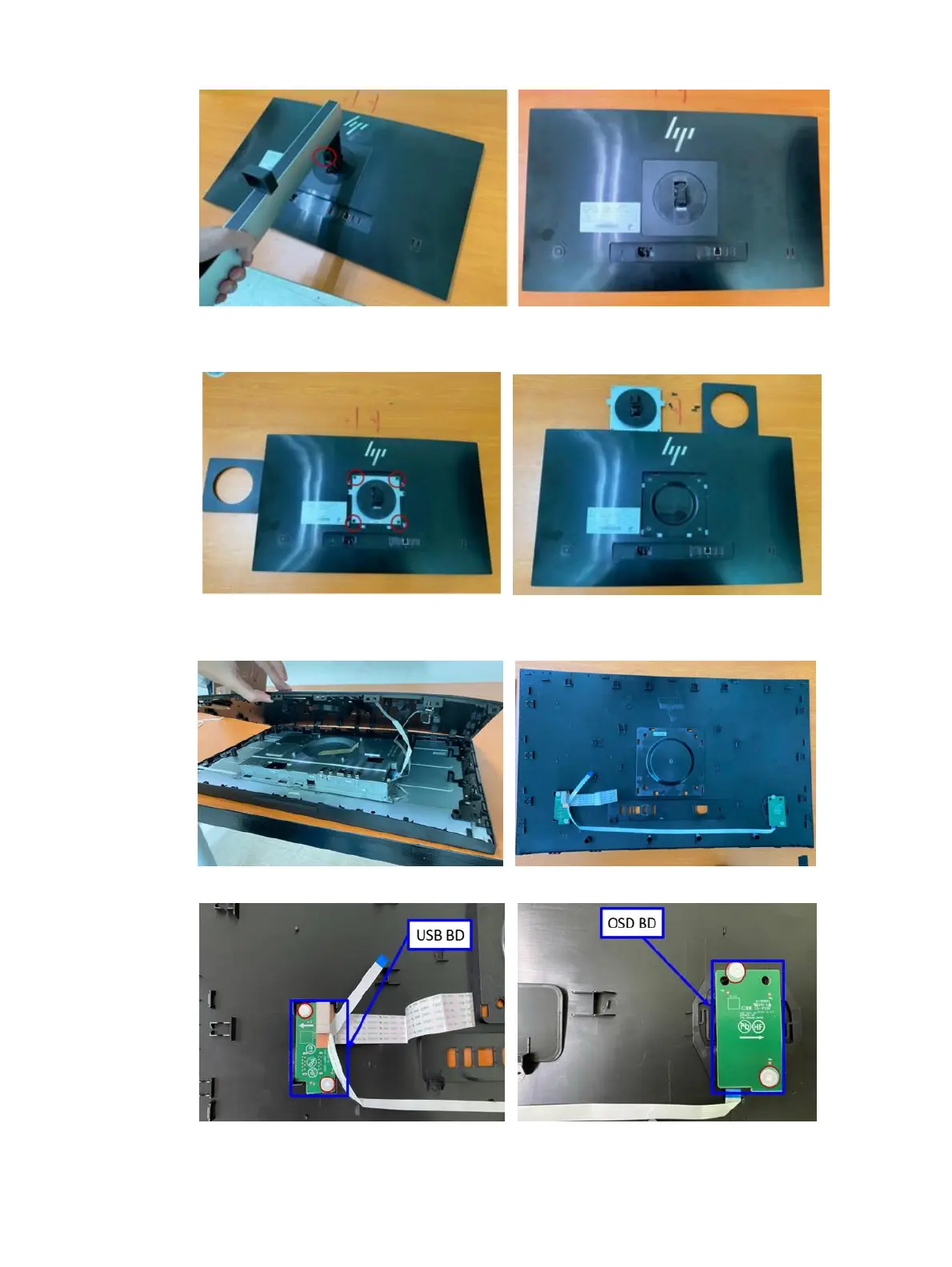

2) Use tool to remove 4pcs screws, then remove VESA cover and Hinge Assy from Display Head.
3) Disconnect the cables and remove the rear cover from the display head.
4) Remove 2pcs screws to release the USB BD. Remove 2pcs screw to release OSD BD
5) Remove all tape and disconnect all cables, then remove the main chassis from the panel..
