HP E24 G5 - Page 15

12

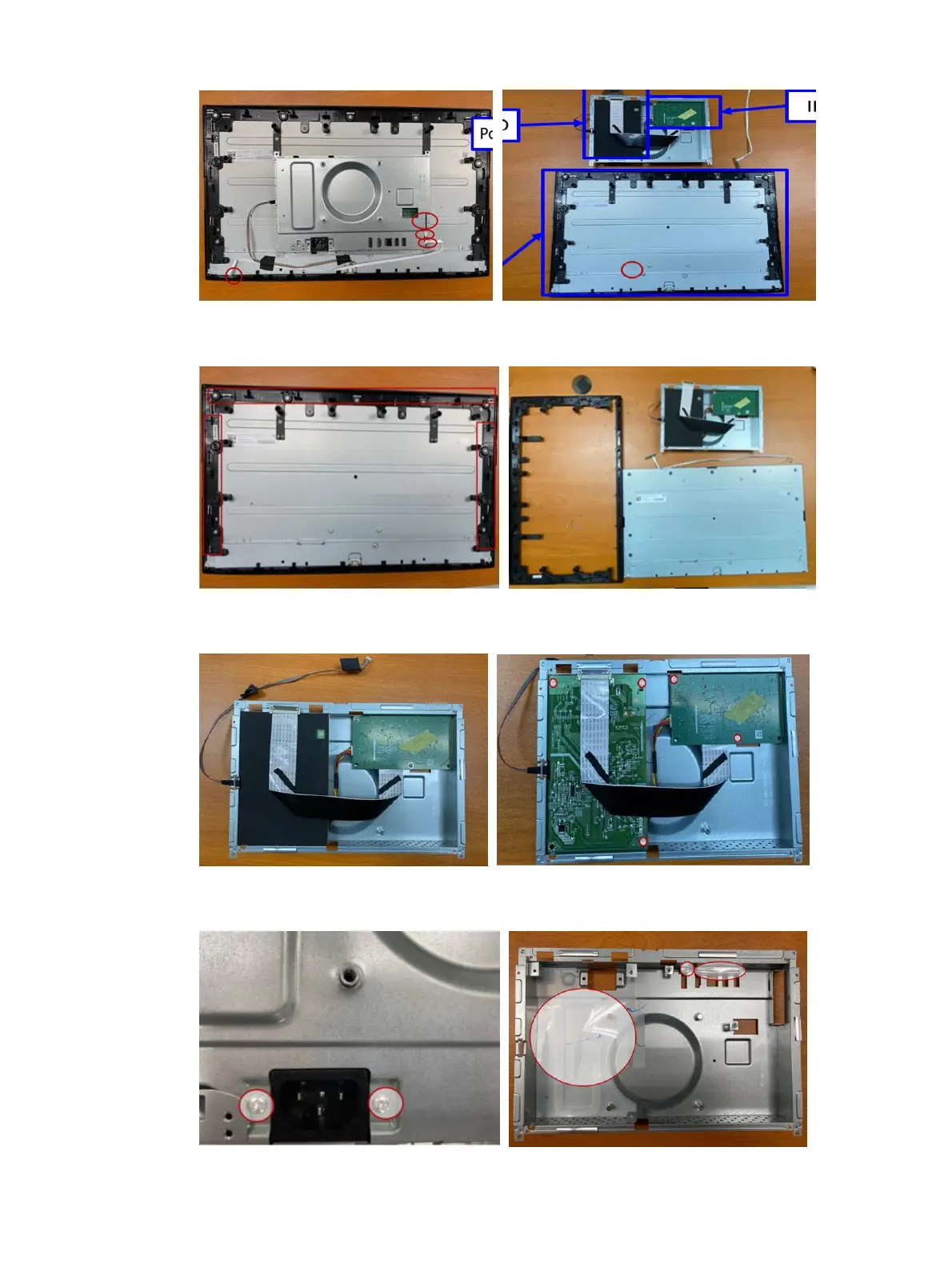

6) Remove all the screws to release the middle frame away from the panel module.
7) Remove the safety Mylar, then release the 5pcs screws from the interface BD and power BD
8) Remove 2pcs screws to release AC outlet, then remove the power board and interface board from chassis.
