HP E24u G5 User Manual

8
3 Illustrated parts catalog

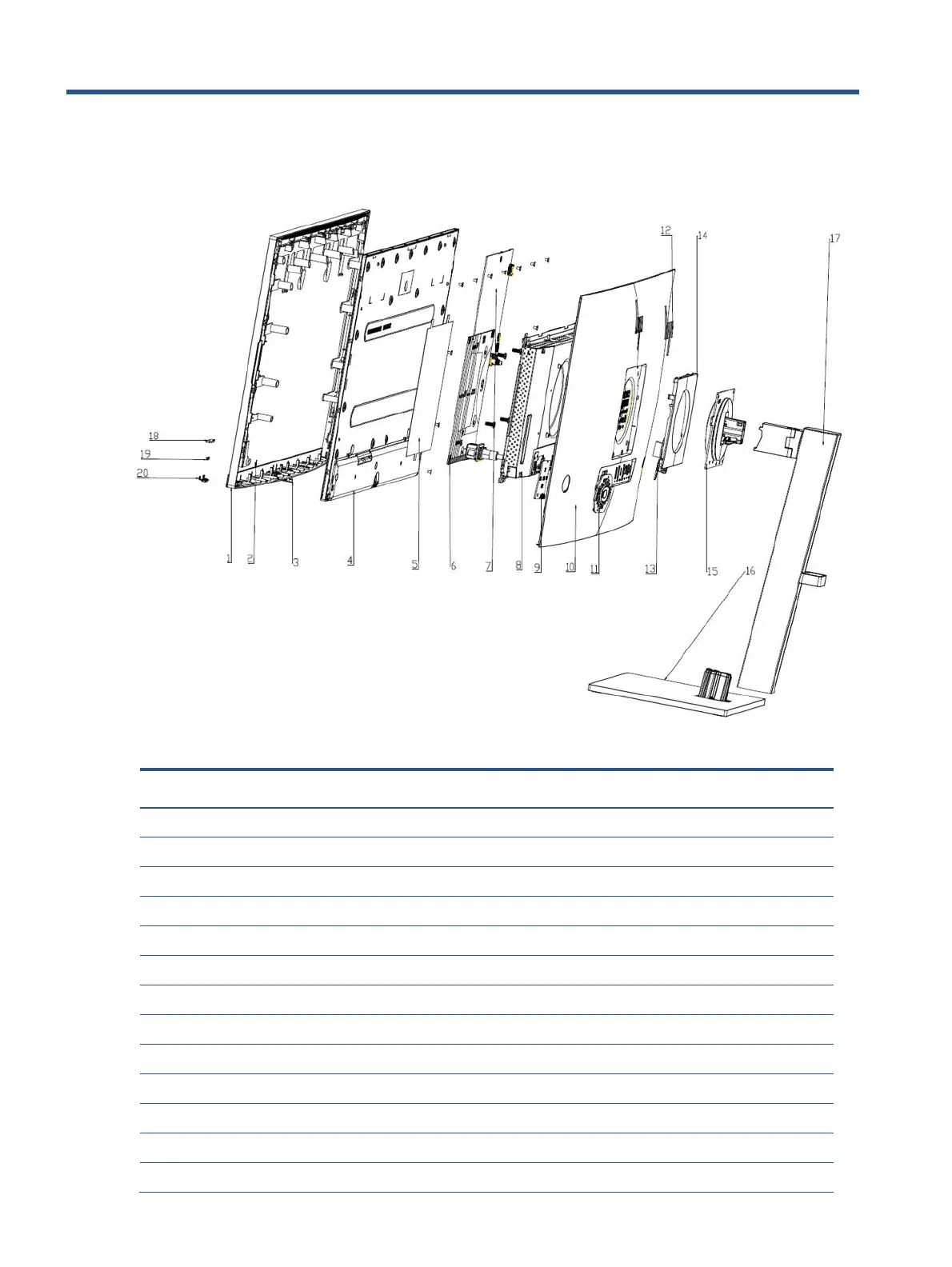

To identify the monitor major components, use this illustration and table.
Table 3-1: Monitor major components and their descriptions
Item
Description
Part number
Qty
1
#ASSY middle cover E24u
1
2
# Front logo E24u
1
3
#Speaker cover E24u
1
4
#ASSY Panel E24u
1
5
#Safety mylar E24u
1
6
# ASSY Power BD E24u
1
7
#ASSY IF BD E24u
1
8
# Assy Main Chassis E24u
1
9
#Assy OSD BD E24u
1
10
#ASSY rear cover E24u
2
11
#ASSY OSD key E24u
1
12
#Rear Logo E24u
1
13
#ASSY Side USB BD E24u
1

HP E24u G5 Specifications

General

Color depth	8 bit
Color gamut	99 %
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HP segment	Business
Product color	Black, Silver
Country of origin	China
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	3
Weight	6000 g
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	140 mm
Package width	621 mm
Package height	400 mm
Package weight	8000 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	160 W
Power consumption (standby)	0.5 W
Power consumption (typical)	23.5 W

Weight and Dimensions

Depth (with stand)	211 mm
Height (with stand)	507 mm
Depth (without stand)	47 mm
Width (without stand)	539.4 mm
Height (without stand)	322.6 mm
