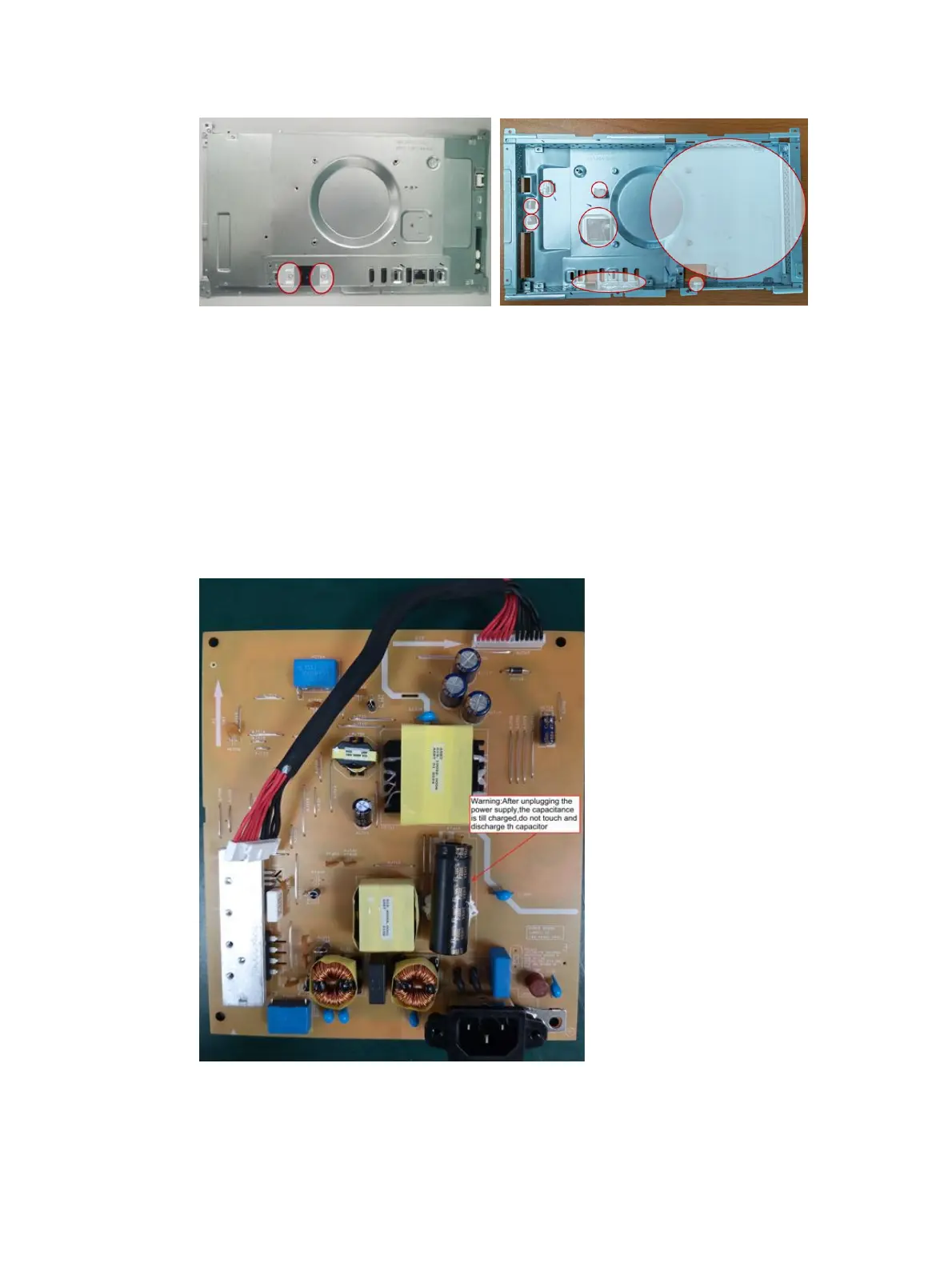

9) Remove 2pcs screws for unlocking the AC outlet. Remove the power BD and Interface BD from the chassis.
Power board
The power board part number is 755.09S02.0001.
Before removing the power board, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 11.
Remove the power board:
1) The HP E24u G4 power board connector position is as follows:
2) Locate the part number location on the board.

HP E24u G5 Specifications

General

Color depth	8 bit
Color gamut	99 %
Pixel pitch	0.27 x 0.27 mm
Screen shape	Flat
Pixel density	93 ppi
Backlight type	Edge LED
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Display technology	LCD
Native aspect ratio	16:9
Vertical scan range	50 - 75 Hz
Maximum refresh rate	75 Hz
Horizontal scan range	30 - 86 kHz
Contrast ratio (dynamic)	8000000:1
Contrast ratio (typical)	1000:1
Display number of colors	16.7 million colors
Display diagonal (metric)	60.5 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HP segment	Business
Product color	Black, Silver
Country of origin	China
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Number of OSD languages	11
Panel mounting interface	100 x 100 mm
On Screen Display (OSD) languages	CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FRE, ITA, JPN, POR, RUS
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
DisplayPort version	1.2
USB upstream port type	USB Type-C
USB Type-A downstream ports quantity	3
Weight	6000 g
Sustainability certificates	ENERGY STAR
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %
Package depth	140 mm
Package width	621 mm
Package height	400 mm
Package weight	8000 g
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	160 W
Power consumption (standby)	0.5 W
Power consumption (typical)	23.5 W

Weight and Dimensions

Depth (with stand)	211 mm
Height (with stand)	507 mm
Depth (without stand)	47 mm
Width (without stand)	539.4 mm
Height (without stand)	322.6 mm
