HP E24u G5 - Page 16

13

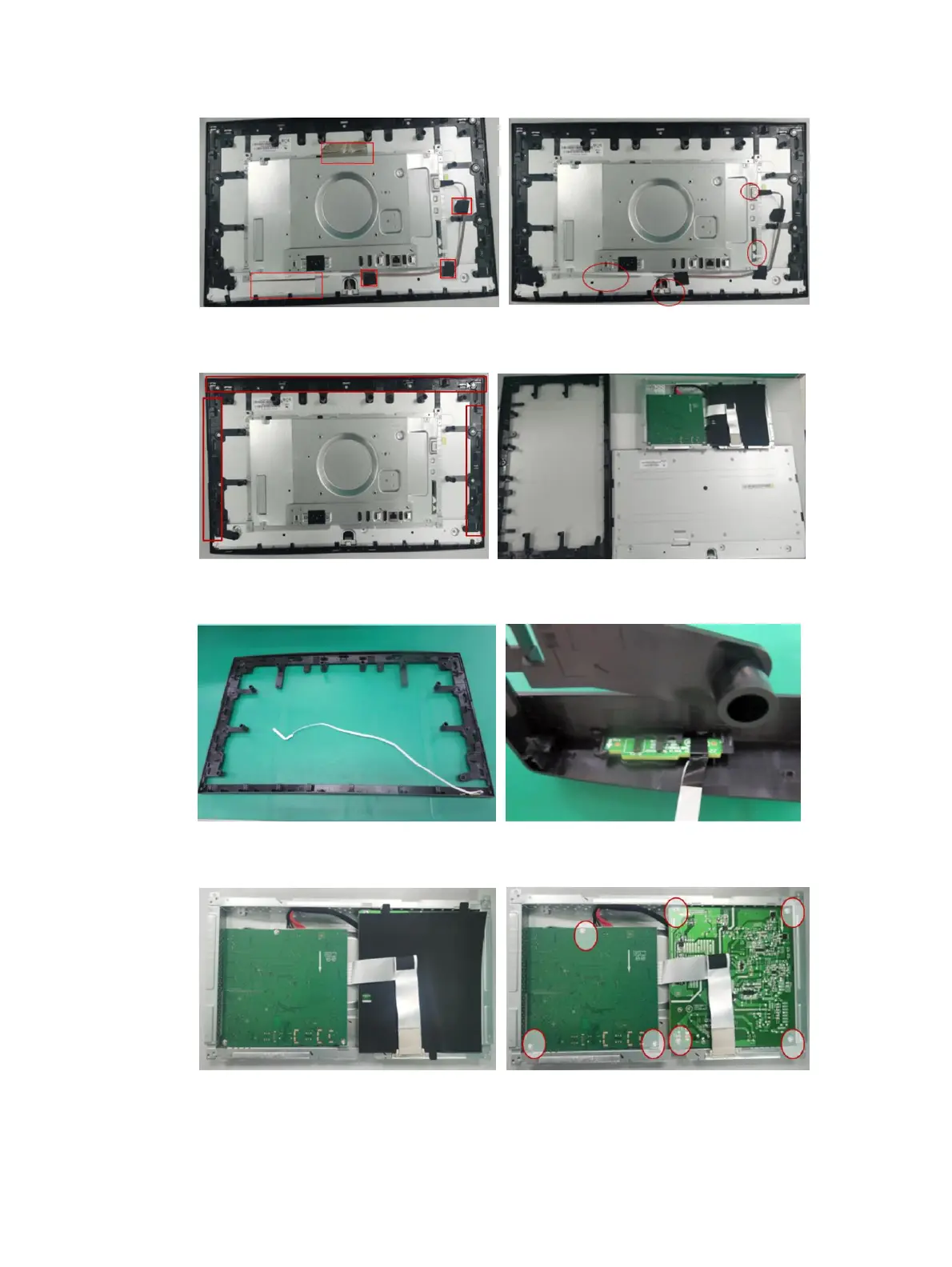

5) Remove ALL AI foil and tapes. Disconnect LVDS cable, power key cable and panel lamp cable.
6) Release all the screws. Remove middle frame and main chassis module.
7) Tear off mylar tape and release power key board from the hook of the middle frame.
8) Remove the safety Mylar, then release the seven screws from the interface BD and power BD
