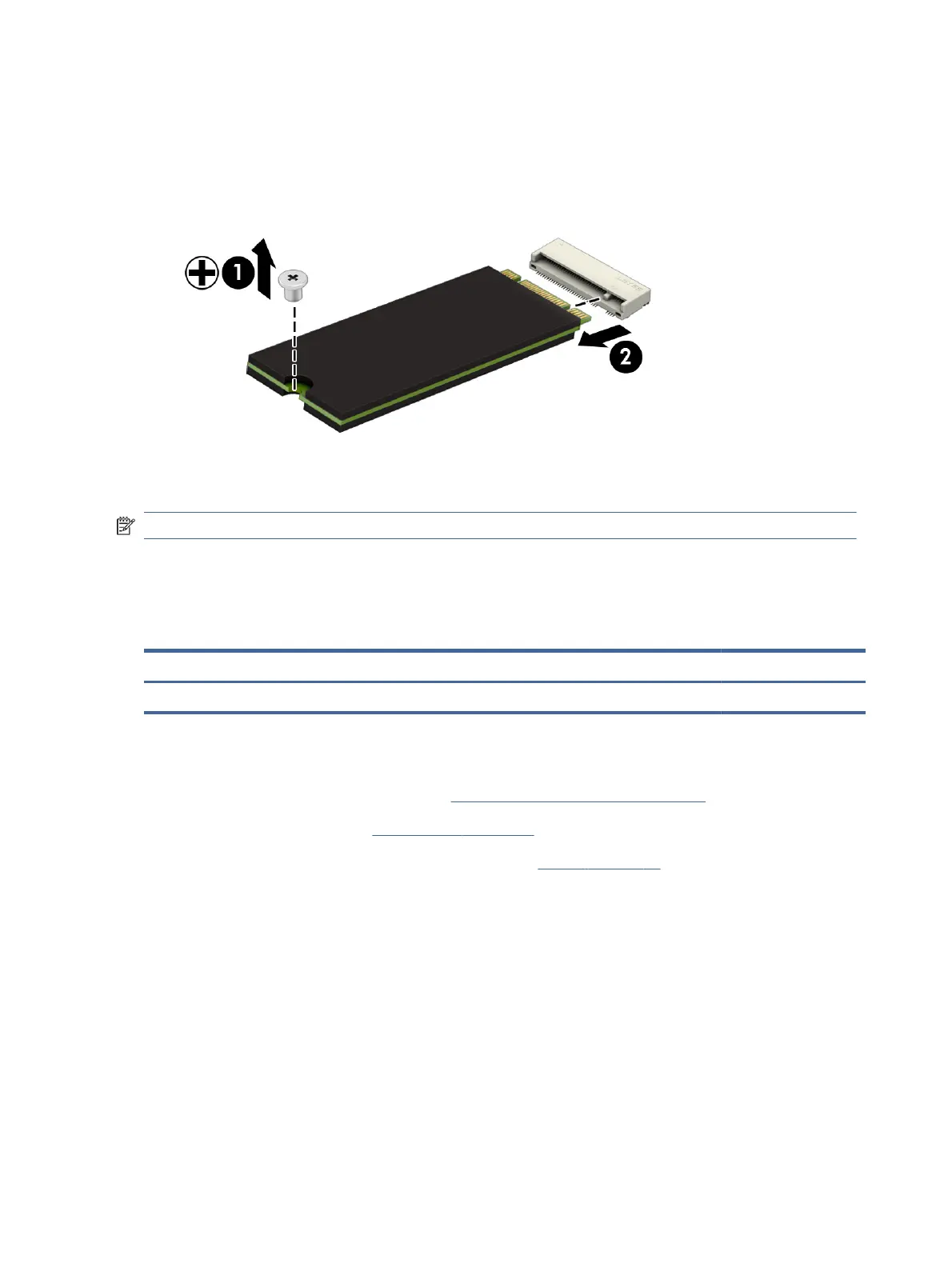

4. Pull the drive (2) away from the socket to remove it (2).
To install the solid-state drive, reverse the removal procedures.
NOTE: Solid-state drives are designed with a notch to prevent incorrect insertion.
Audio jack
To remove the audio jack, use this procedure and illustration.
Table 5-8
Audio jack description and part number
Description Spare part number
Audio jack (includes cable) N11993-001
Before removing the audio jack, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 45).
2. Remove the bottom cover (see Bottom cover on page 45).
3. Disconnect the battery cable from the system board (see Battery on page 47).
Remove the audio jack:
1. Remove the Phillips M2.0 × 2.5 screw (1) that secures the audio jack to the computer.
2. Release the zero insertion force (ZIF) connector (2) to which the audio jack cable is connected, and then
disconnect the cable from the system board.
56
Chapter 5Removal and replacement procedures for authorized service provider parts
