3. Detach the touchpad cable (3) from the top cover/keyboard. (The touchpad cable is attached to the top
cover/keyboard with double-sided adhesive.)

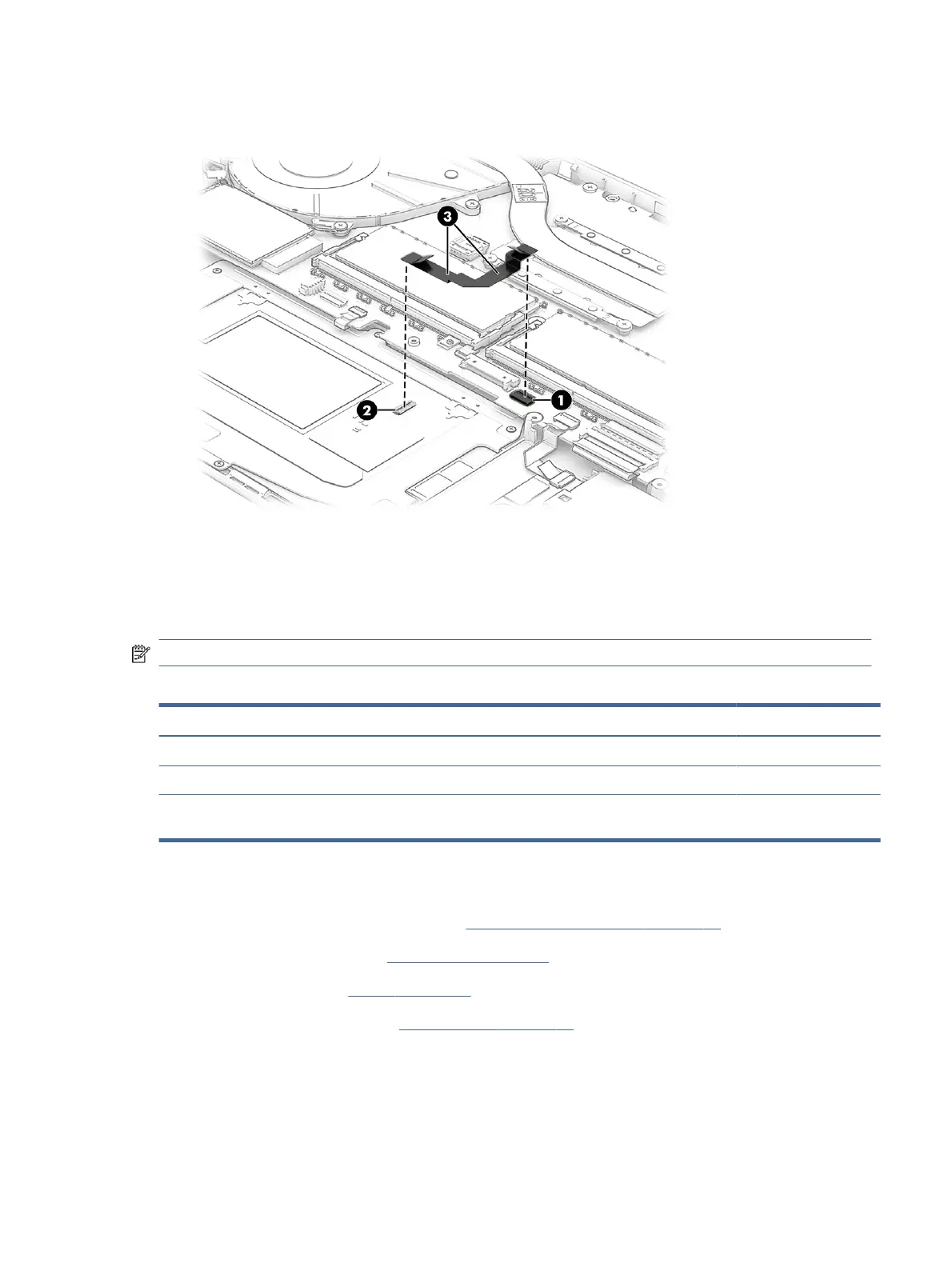

Reverse this procedure to install the touchpad cable.
Touchpad
To remove the touchpad, use this procedure and illustration.
NOTE: The touchpad spare part kit includes touchpad.
Table 5-16
Touchpad descriptions and part numbers
Description Spare part number
Touchpad with NFC module antenna N15436-001
Touchpad without NFC module antenna N09033-001
NOTE: The touchpad spare part kit does not include the touchpad cable. The touchpad cable is included in the Cable Kit, spare part
number N09040-001.
Before removing thetouchpad, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 45).
2. Remove the bottom cover (see Bottom cover on page 45).
3. Remove the battery (see Battery on page 47).
4. Remove the touchpad cable (see Touchpad cable on page 82).
Remove the touchpad:
1. Release the ZIF connector (1) to which the NFC module cable is connected, and then disconnect the NFC
module cable from the NFC module.
Touchpad
83
