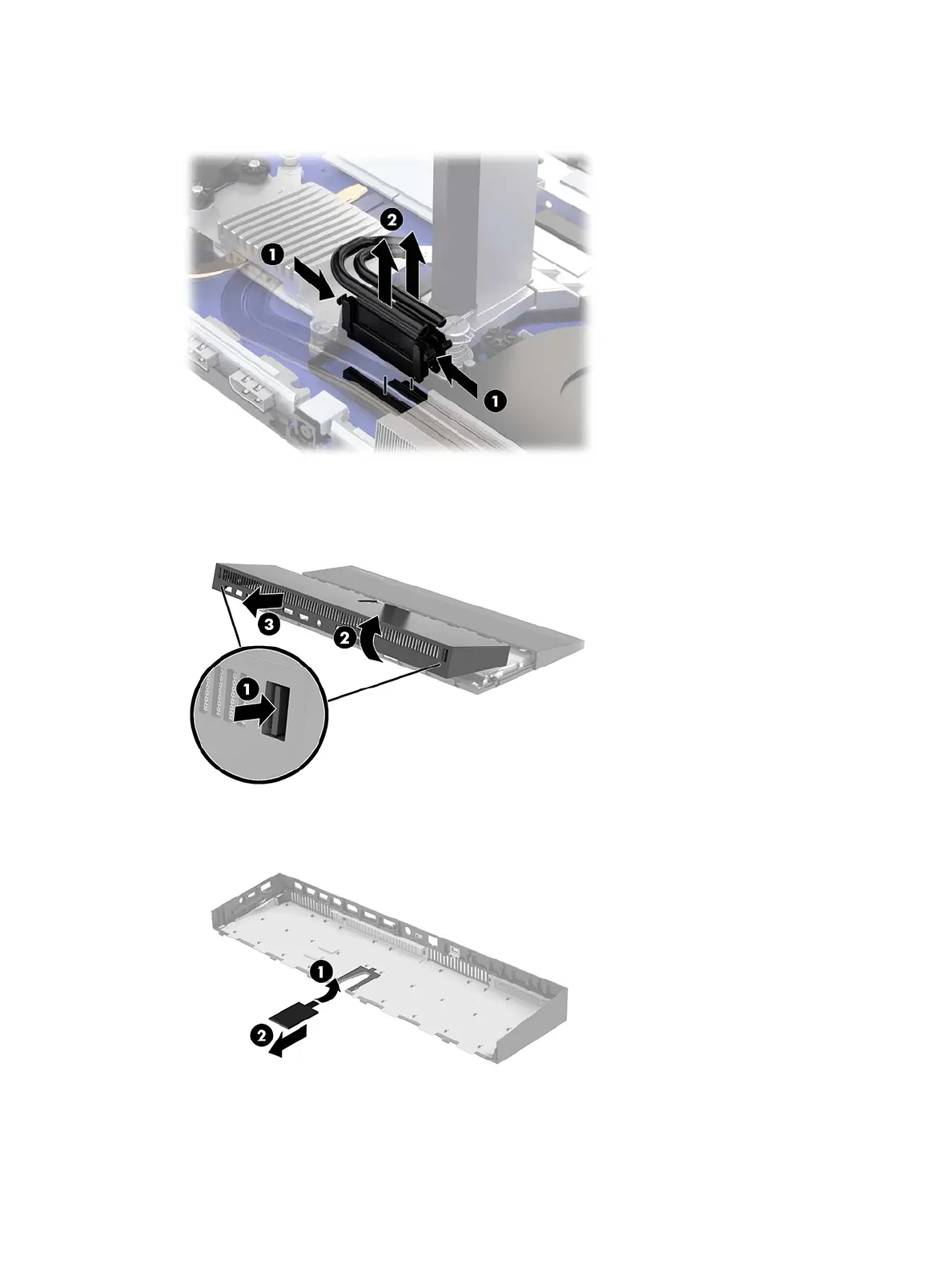

5. Disconnect the two monitor cables attached to the system board by squeezing rmly inward on the two
ends of the cable connectors (1) and pulling the cable connectors up and o the system board (2).
6. To remove the rear access cover from the computer, press the two release buttons on the rear of the
base unit (1), and at the same time rotate the rear of the cover up (2). Then, slide the cover back to
remove it from the computer (3).
7. Turn the cover over. Lift the tab on the blank, and then slide the blank away from the rear cover to
remove it.
6 Chapter 2 Setup
