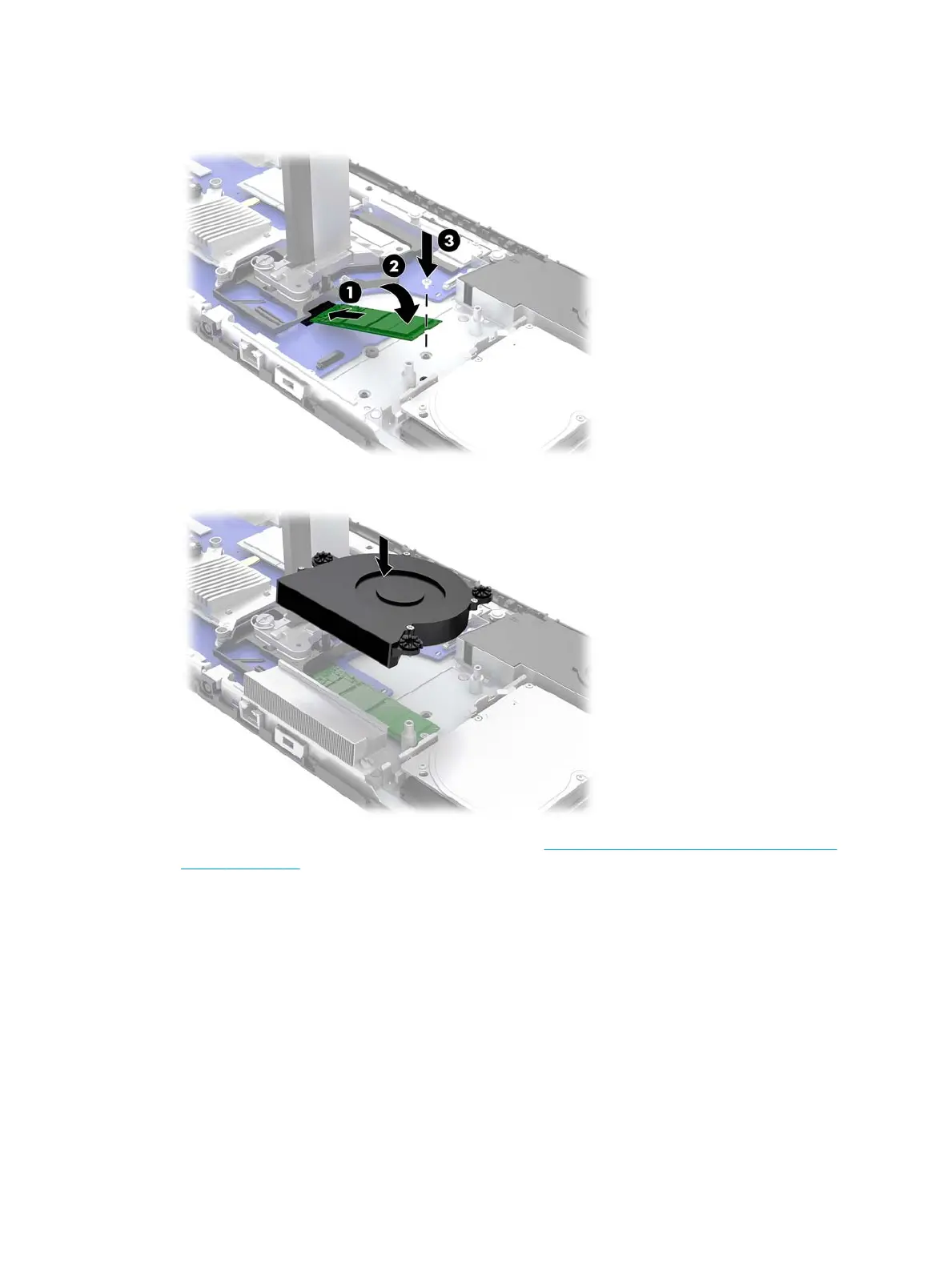

7. To install an M.2 SSD, slide the connector end of the SSD into the system board connector (1), press the
other end of the SSD down (2), and then secure the SSD to the system board with the screw (3).
8. Replace the fan by pressing it down onto the system board posts.
9. Replace the base unit front and rear access panels. See Removing and replacing the base unit access
covers on page 15.
10. Reconnect the power cord and any external devices, and then turn on the computer.
Replacing or installing a webcam
To replace a webcam:
1. Remove all removable media, such as USB ash drives, from the computer.
2. Turn o the computer properly through the operating system, and turn o any external devices.
3. Disconnect the power cord from the AC outlet and disconnect any external devices.
28 Chapter 3 Hardware repair and upgrade
