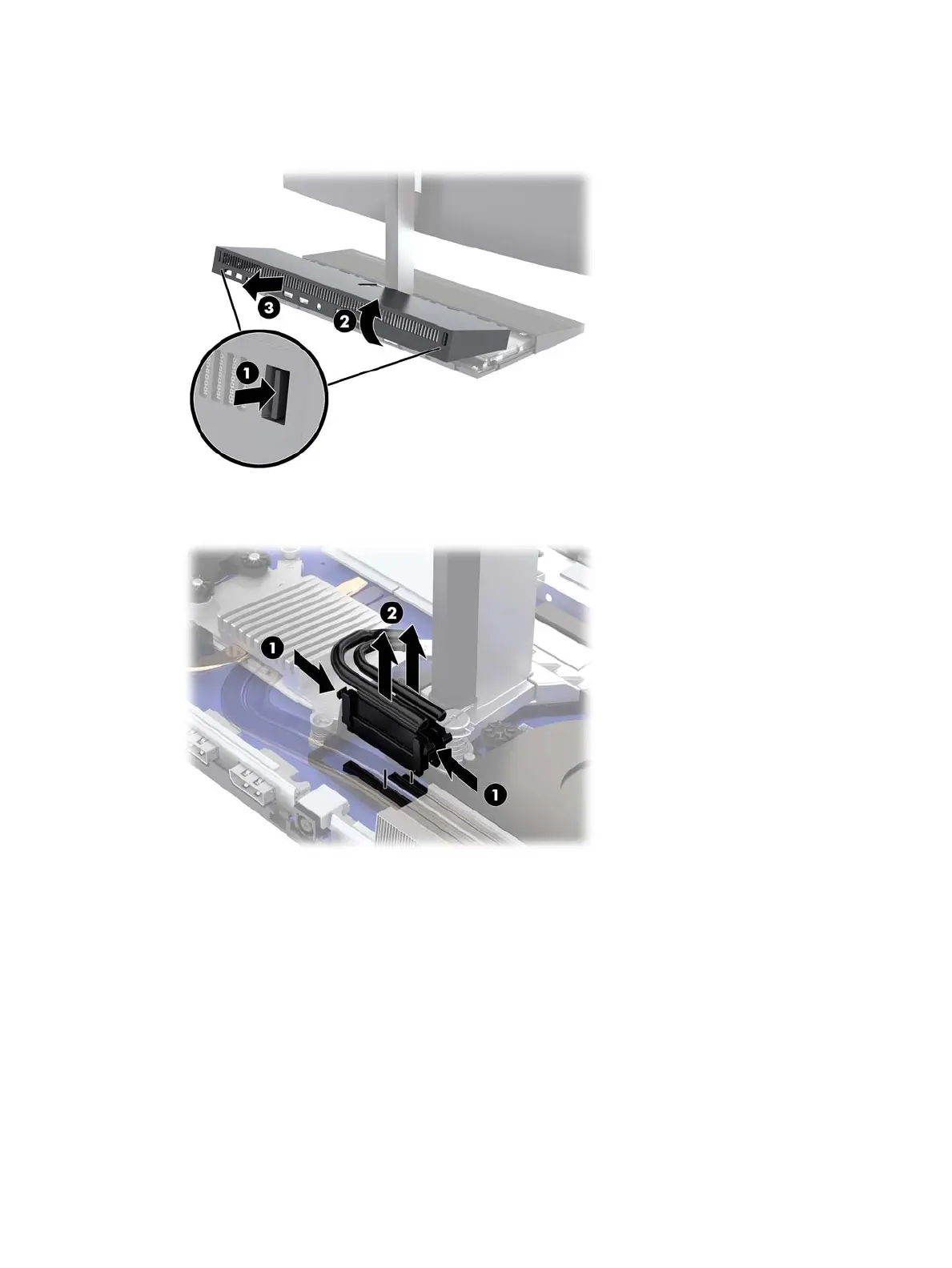

4. To remove the rear access cover, press the two release buttons on the rear of the base unit (1), and at
the same time rotate the rear of the cover up (2). Then slide the cover back to remove it from the base
(3).
5. Disconnect the two monitor cables attached to the system board by rmly squeezing inward on the two
ends of the cable connectors (1) and pulling the cable connectors up and o the system board (2).
18 Chapter 3 Hardware repair and upgrade
