Installing a 2.5 inch hard disk drive

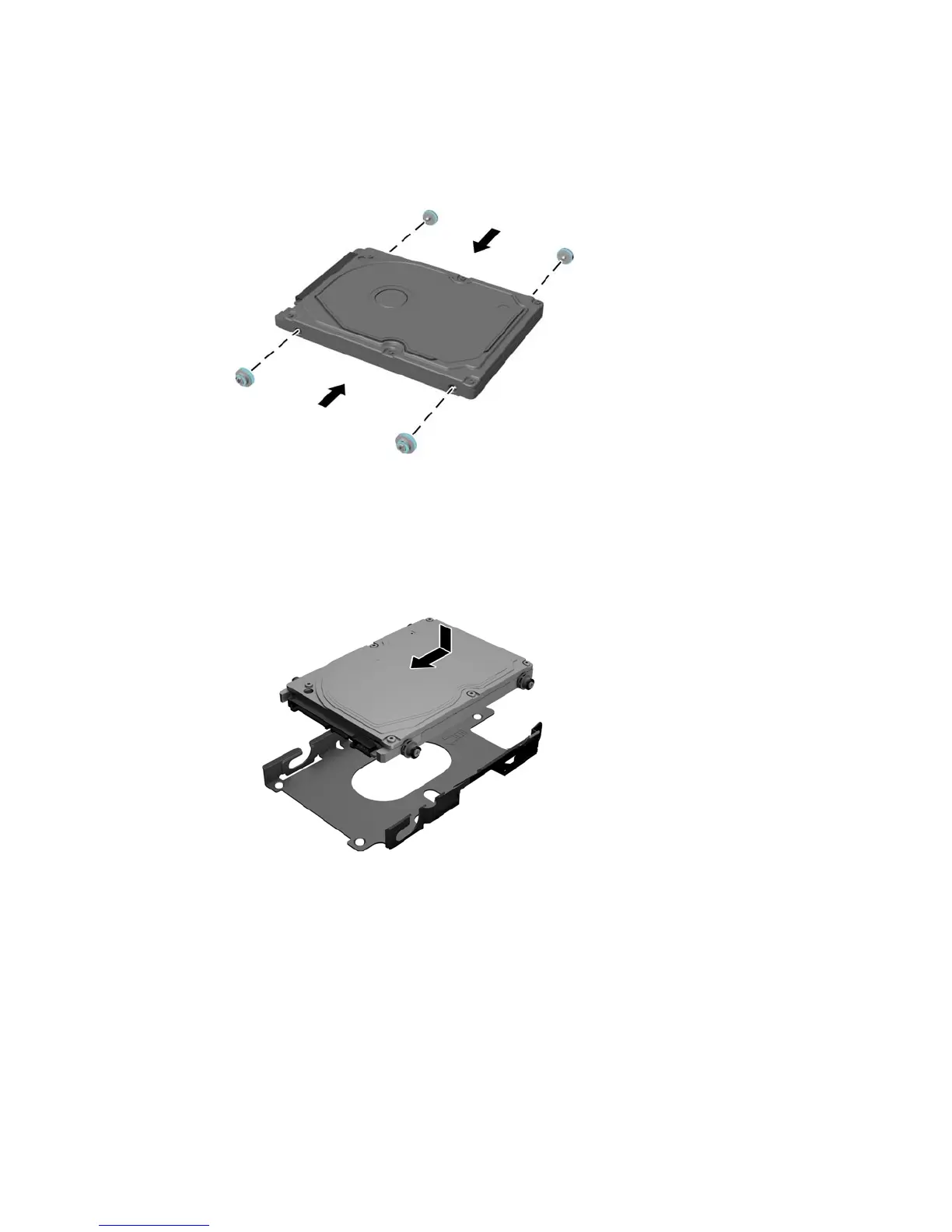

1. Fasten four mounting screws with grommets onto the 2.5 inch HDD.
2. Position the 2.5 inch drive above the drive cage with the connectors facing the power and data cables
next to the drive cage.
3. Place the 2.5 inch HDD into the drive cage and slide it toward the cables until the cage snaps into place.
4. Connect the power and data cables to the HDD.
5. To replace the access panel, align the latches with the slots in the rear port compartment. Set the
access panel down (1) and press in the tabs around all sides of the panel until it is in place.
Replacing drives 55
