Removing an unlocked front bezel
Prerequisites
1.
Power down the server.
2.
Disconnect the power cord from the AC source, and then from the server.
3.
Disconnect all peripheral cables from the server.

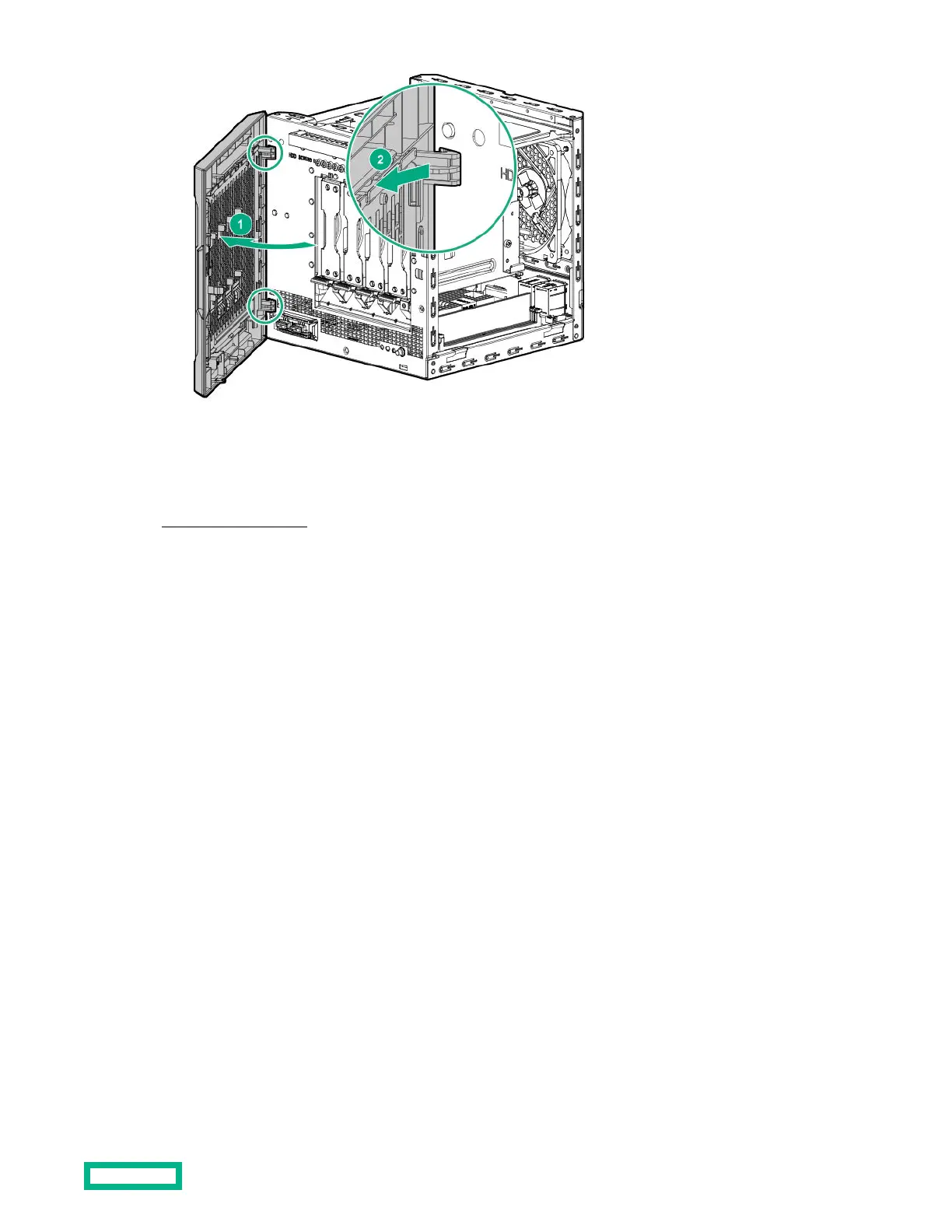

Procedure
1.
Open the front bezel.
The front bezel is a removable part. Opening the bezel will loosen it from the front panel.
2.
To completely detach the bezel from the front panel, pull the bezel hinges from the chassis.
Retain the bezel for later use.
Operations
28
