Item Component Description
8 Display port 2 Connects to a digital display device, such as a high-resolution set top
boxes or TV displays.
2
9 USB 20 ports (2)
Connect USB 20 devices to these ports.
10 USB 30 ports (2)
Connect USB 30 devices to these ports. USB 30 support after POST
varies by operating system.
11 NIC port 1 (1 Gb) Connect an Ethernet cable here to connect the server to a wired
network.
3
12 NIC port 2 (1 Gb) Connect an Ethernet cable here to connect the server to a wired
network.
3
1
This expansion slot is open-ended, which enables down-plugging. Down-plugging means a larger-width expansion board can be
installed in a smaller-width connector. For this server, the expansion slot supports low-profile expansion boards with a physical
connector link width of up to ×16. The board operates at the highest common negotiable link width specified for the slot.
2
To support 4K resolution at a full 60 Hz frame rate, this Display port requires dual-channel memory configuration. Single-channel
memory configuration will only support up to 30 Hz frame rate.
3
This NIC port supports 10/100/1000 Mbps data transfer rate per port.

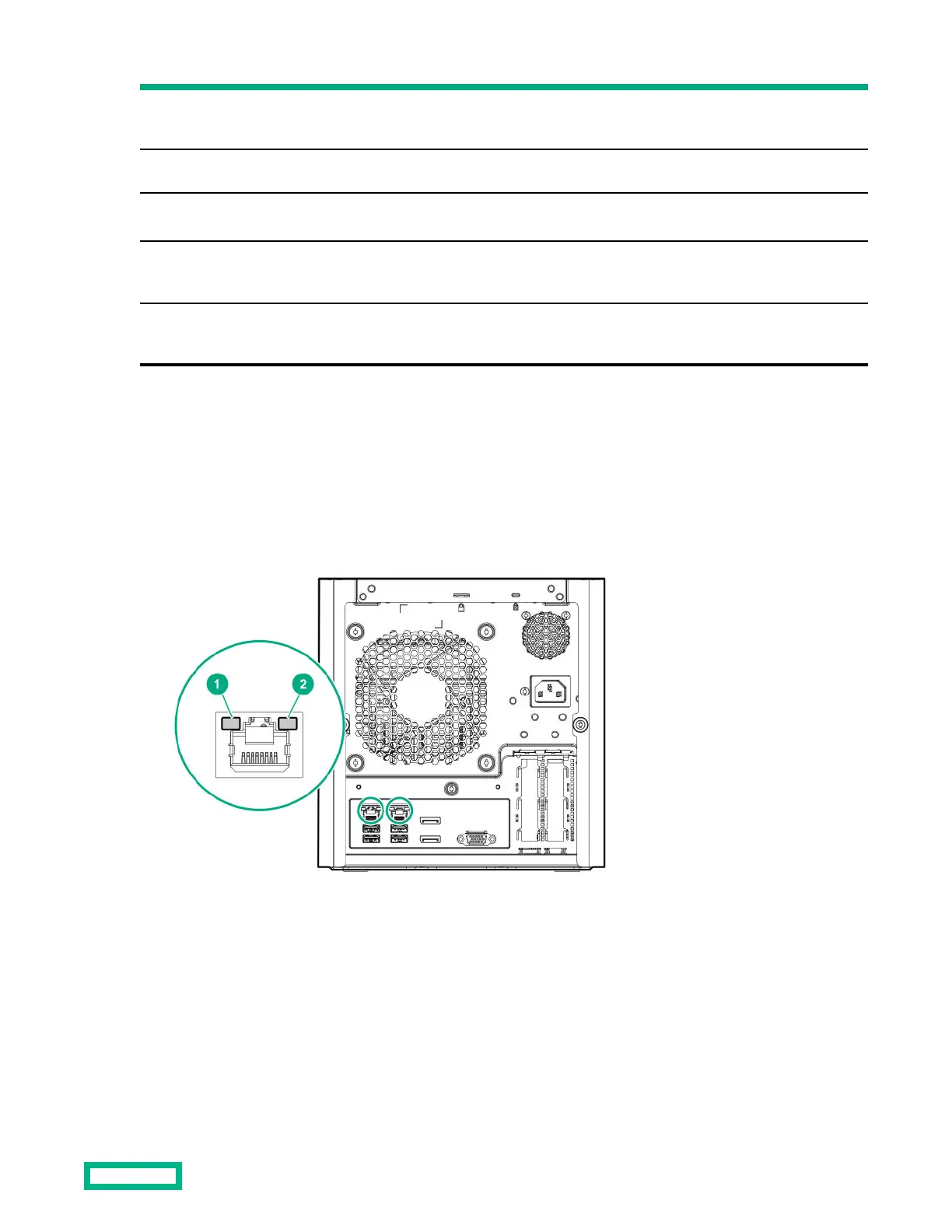

Rear panel LEDs
Component identification
