Install the chassis cover

To prevent access to the front bezel lock and the internal components, install the chassis cover.

Install the chassis cover

Prerequisites

1. Verify that all internal cables are properly connected and are secured in their respective cable ties.

2. Verify that the drive cables are not blocking the fan blades.

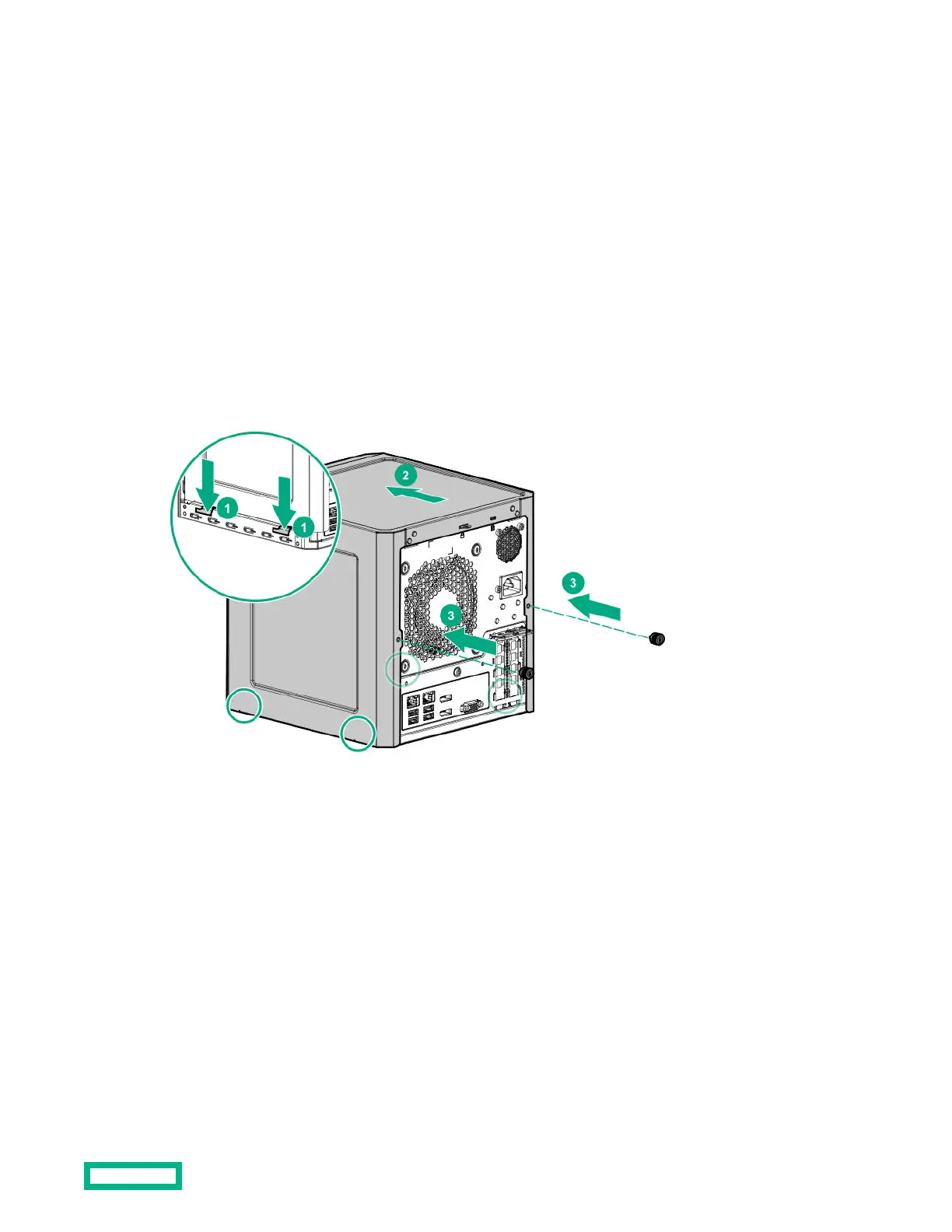

Procedure

1. Insert the tabs on the bottom left and right sides of the chassis cover into the corresponding slots on the chassis.

2. Slide the chassis cover towards the front panel.

3. Install the chassis thumbscrews.

If removed, install the security padlock and/or the Kensington security lock.

For more information, see the lock documentation.

Install the system board assembly

To secure the system board inside the chassis, install the system board assembly.

Install the system board assembly

Prerequisites

Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
