◦ Optical drive
◦ Optical drive bracket
◦ Phillips No. 2 screws (2, for securing the optical drive bracket)
◦ T-15 screw (1, for securing the optical drive)
Procedure

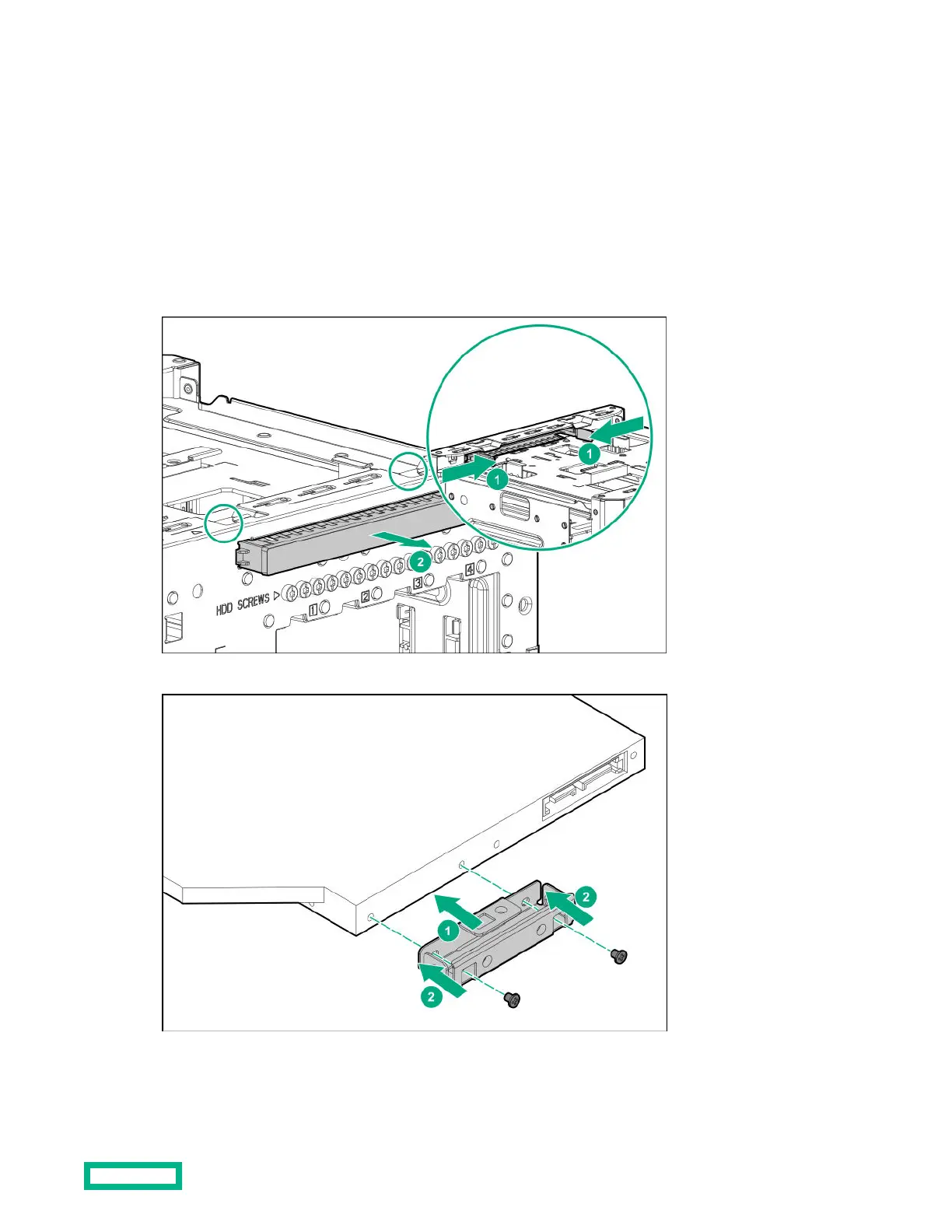

1. Facing the server, press and hold the release latches on both sides of the optical drive blank, and then push the blank
out of the media bay.
Retain the blank for future use.
2.
Attach the bracket to the optical drive.
3. Slide the optical drive into the media bay.
4. Install the optical drive screw.
Hardware options installation
46
