Optical drive
NOTE: Optical drive spare part kits include bracket and bezel.
Description Spare part number
DVD+/-RW Double-Layer SuperMulti Drive 812693-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
To remove the optical drive:

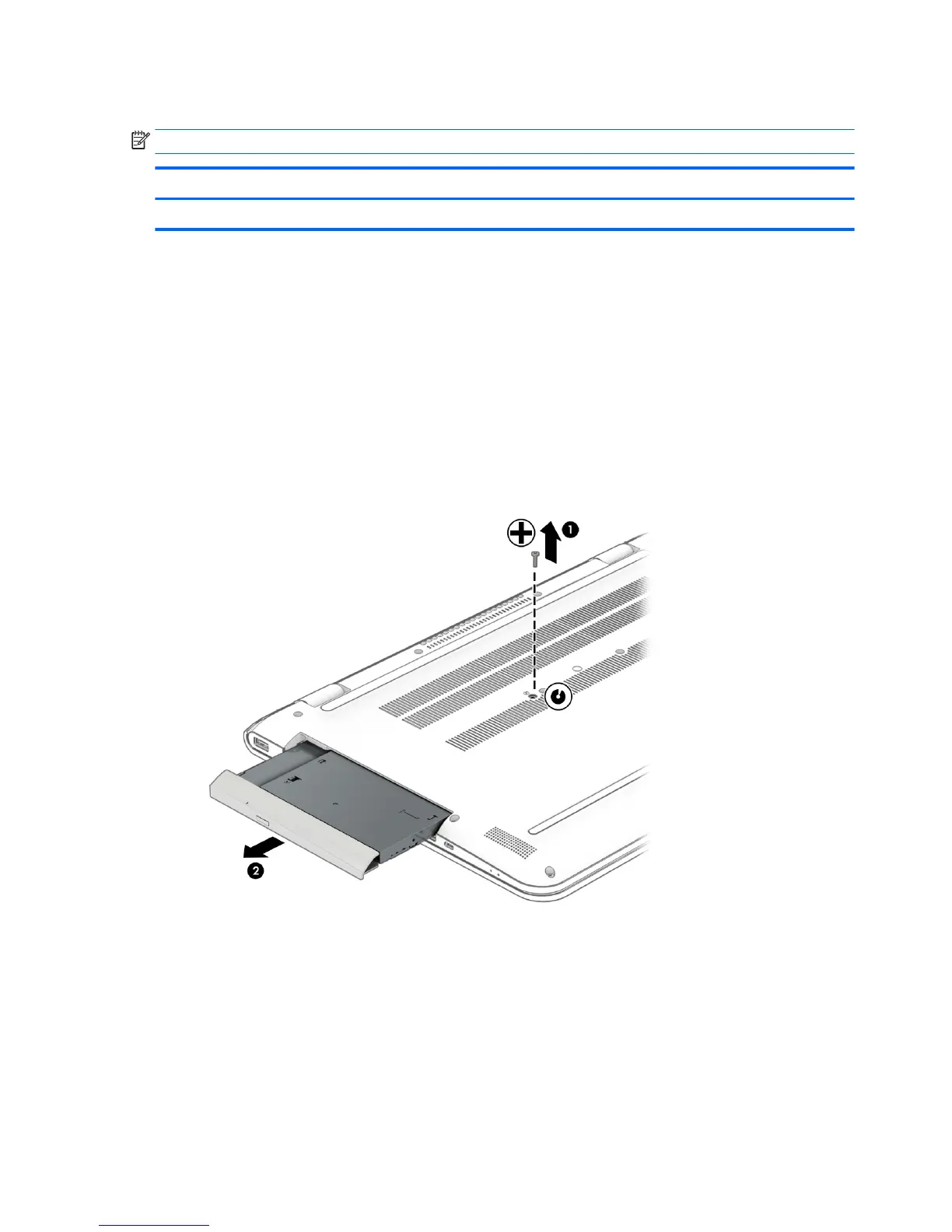

1. Remove the Phillips PM2.5×8.0 screw (1) that secures the optical drive to the computer.
2. Remove the optical drive (2) by sliding it out of the optical drive bay.
32 Chapter 5 Removal and replacement procedures for Customer Self-Repair parts
