HP ENVY

Cable routing

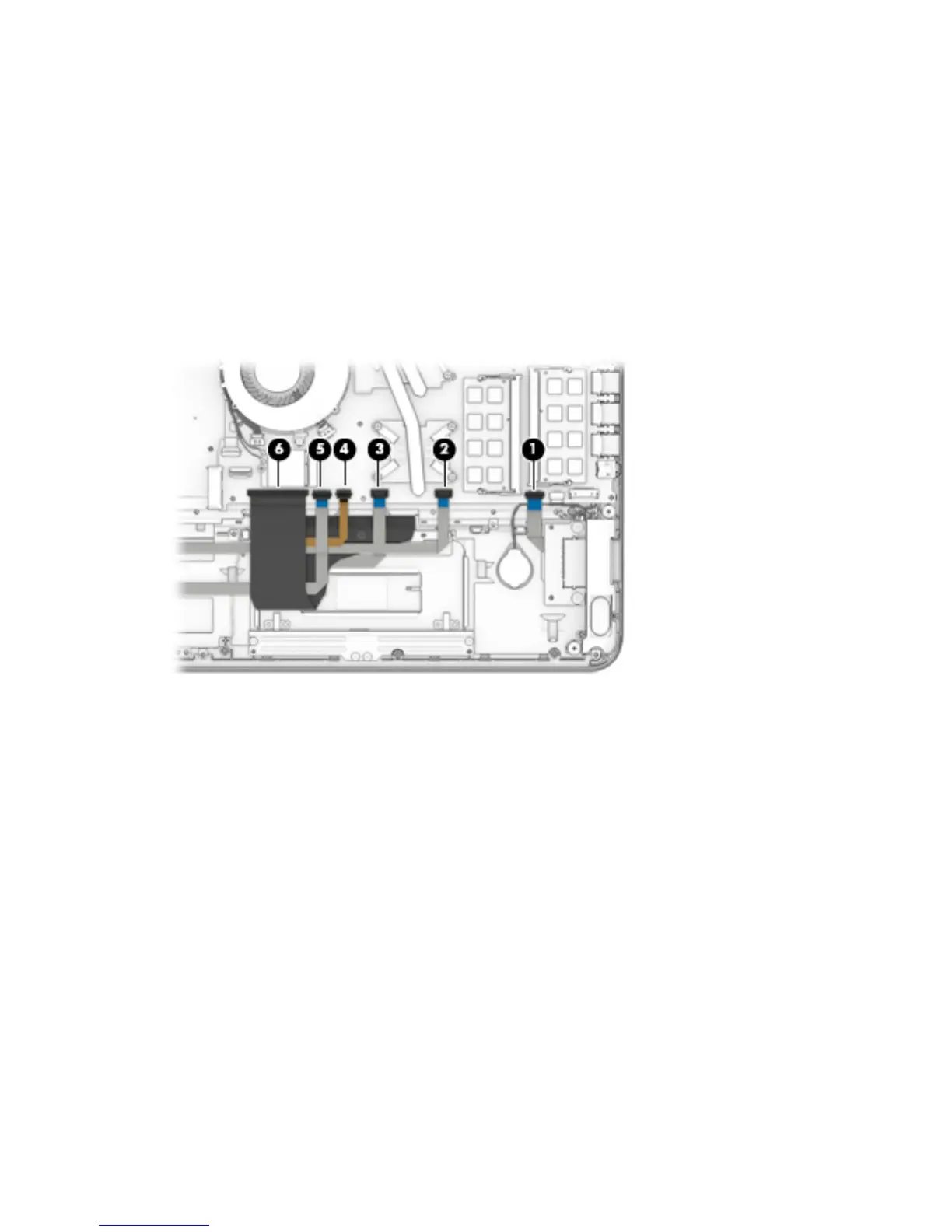

There are six ribbon cables that connect to the system board that route under the battery with specic routing
around and through each other. Use the image below to determine correct cabling.
(1): Card reader cable
(2): Fingerprint reader cable
(3): Touchpad cable
(4): Keyboard backlight cable
(5): LED board cable
(6): Keyboard cable
Component replacement procedures 59
