Power connector cable
Description Spare part number
Power connector cable (includes bracket) 812681-001
Before removing the power connector cable, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 35).
5. Remove the battery (see Battery on page 54).
6. Remove the hard drive (see Hard drive on page 55).
7. Remove the speakers (see Speakers (front) on page 57).
8. Remove the system board (see System board on page 66).
9. Remove the display (see Display assembly – touch screen on page 71).
Remove the power connector cable:

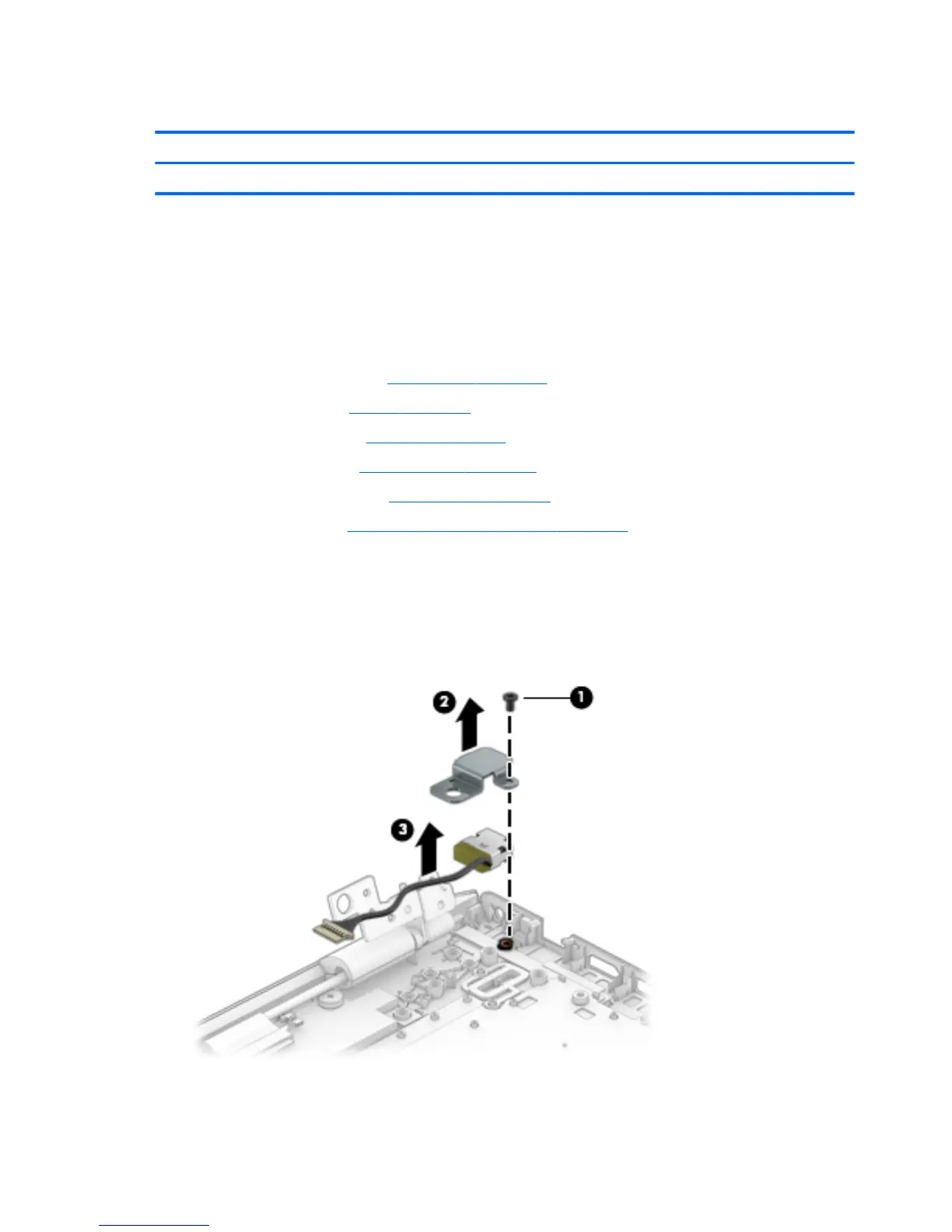

1. Remove the Phillips PM2.5×4.0 screw (1) that secures the power connector bracket to the computer.
2. Lift the bracket from atop the power connector (2).
3. Remove the power connector (3) from the computer.
Reverse this procedure to install the power connector cable.
